Vehicle

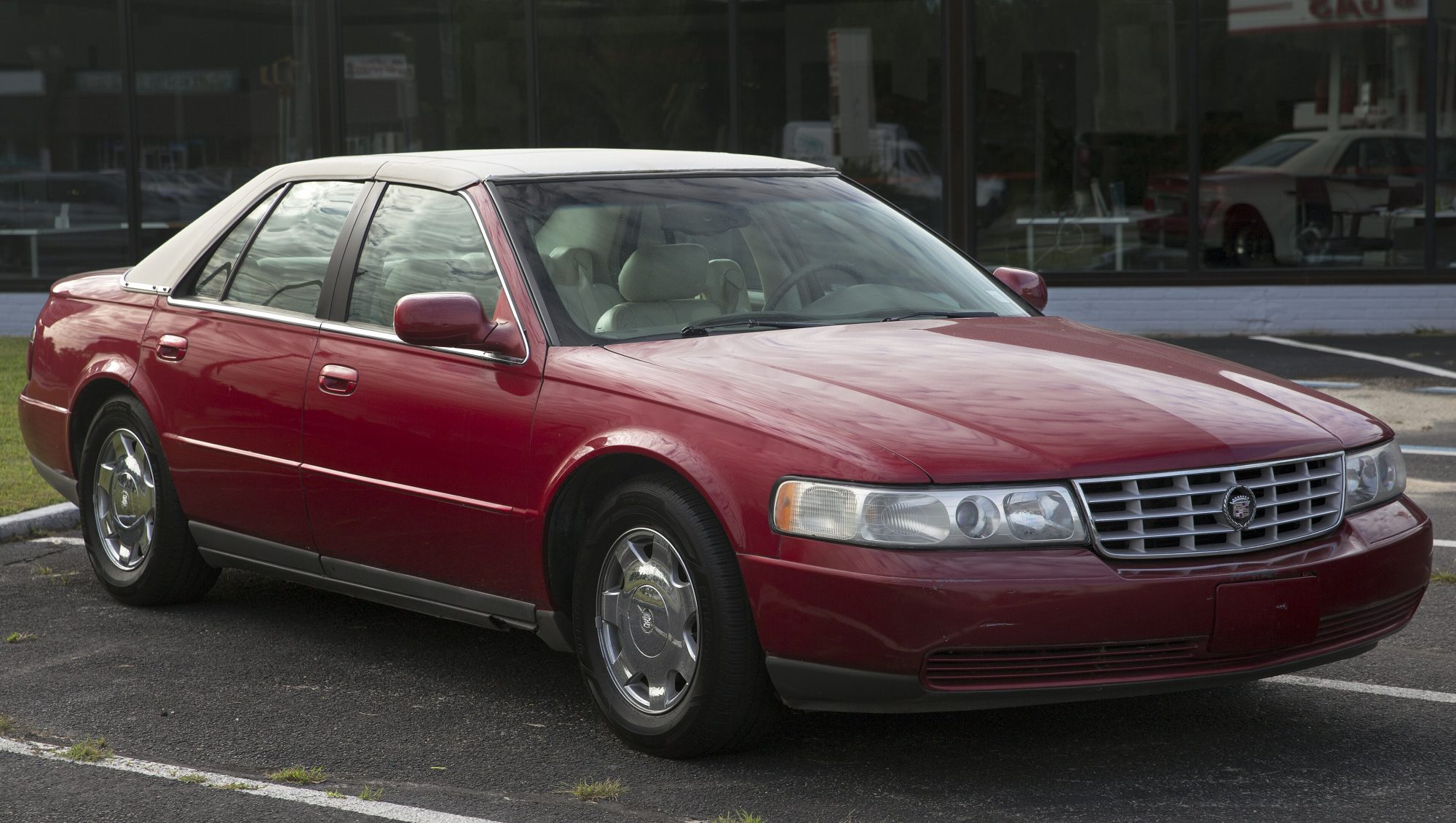

Cadillac Seville
The smaller of Cadillac's two big saloons, and the nameplate changes meaning in 2005: everything up to 2004 is a front-drive Northstar car sharing its running gear with the DeVille, and the STS that followed is a rear-drive Sigma-platform car sharing its with the CTS and the SRX. A reader with an STS and a front-drive diagnosis in hand is on the wrong vehicle. The earlier cars carry the Northstar head-bolt question; the STS adds Magnetic Ride Control and an available all-wheel-drive transfer case that the earlier car has no equivalent of.
Generations
-
Fourth generation 1992–1997
Sold as SLS and STS trims — the origin of the letters that later became model names. Northstar from 1993.
- Body styles
- Sedan
- Platform
- GM K-body
- Engines
-
- 4.9 V8 — L26 · petrol · 149 kW (200 hp) · 373 Nm (275 lb-ft) · 1992-1993
- 4.6 Northstar V8 — LD8 · petrol · 205 kW (275 hp) · 407 Nm (300 lb-ft) · SLS
- 4.6 Northstar V8 high-output — L37 · petrol · 224 kW (300 hp) · 400 Nm (295 lb-ft) · STS
- Transmissions
- 4-speed automatic
- Drivetrain
- Front-wheel drive
-
Fifth generation 1997–2004
G-body and the last front-drive Seville. StabiliTrak and continuously variable road-sensing suspension are standard on the STS.
- Body styles
- Sedan
- Platform
- GM G-body
- Engines
-
- 4.6 Northstar V8 — LD8 · petrol · 205 kW (275 hp) · 407 Nm (300 lb-ft) · SLS
- 4.6 Northstar V8 high-output — L37 · petrol · 224 kW (300 hp) · 400 Nm (295 lb-ft) · STS
- Transmissions
- 4-speed automatic
- Drivetrain
- Front-wheel drive
-
STS 2004–2011
Rear-drive Sigma platform, shared with the CTS and SRX — a different car under the same nameplate. The STS-V's supercharged 4.4 Northstar is a low-volume engine with its own supercharger and intercooler circuit.
- Body styles
- Sedan
- Platform
- GM Sigma
- Engines
-
- 3.6 V6 — LY7 · petrol · 190 kW (255 hp) · 342 Nm (252 lb-ft)
- 4.6 Northstar V8 — LH2 · petrol · 239 kW (320 hp) · 427 Nm (315 lb-ft)
- 4.4 supercharged Northstar V8 — LC3 · petrol · 350 kW (469 hp) · 595 Nm (439 lb-ft) · STS-V
- Transmissions
- 5-speed automatic · 6-speed 6L80 automatic
- Drivetrain
- Rear-wheel drive · All-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
