Vehicle

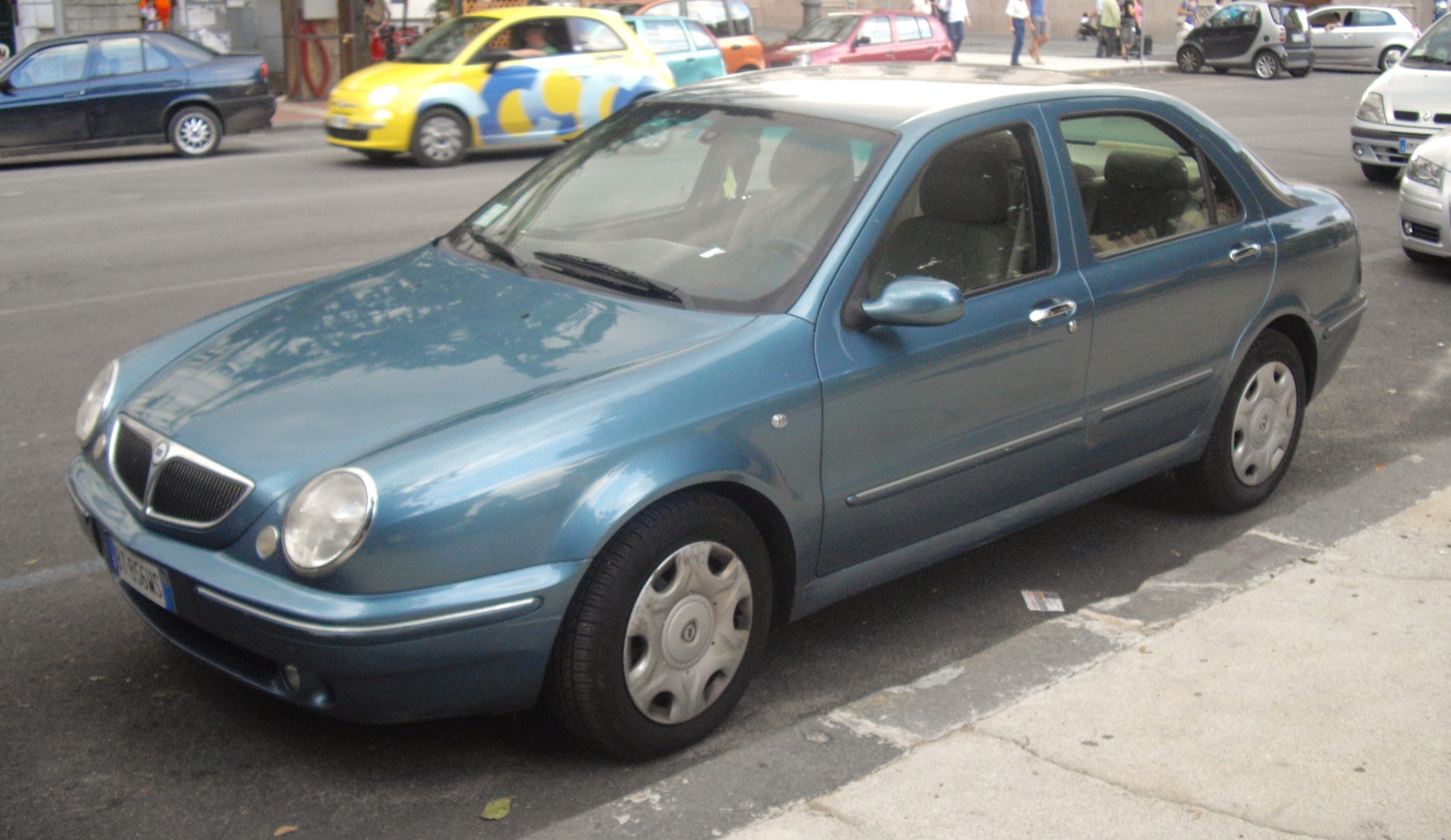

Lancia Lybra
The saloon and estate that replaced the Dedra, built on the Fiat platform it shares with the Alfa Romeo 156, which is where much of its running-gear information lives. The engines are Fiat group units — the twin-spark petrols and the 1.9 and 2.4 JTD common-rail diesels — and their faults are the familiar ones: on the twin-spark, variable valve timing and the cam-cover-mounted coils; on the JTD, injector return-flow and a turbocharger whose vane mechanism sticks with soot. What is more its own is the electrical architecture: the body computer controls most of the car, and a weak battery produces convincing faults across unrelated systems, so charge and test before reading anything.
Generations
-
First generation 1999–2005
Alfa 156 platform with Fiat group engines; the body computer throws unrelated faults on a weak battery.
- Body styles
- Sedan · Estate
- Platform
- Fiat Tipo Due
- Engines
-
- 1.6 16v — petrol · 76 kW (102 hp) · 144–145 Nm (106–107 lb-ft)
- 1.8 16v — petrol · 96 kW (129 hp) · 156–164 Nm (115–121 lb-ft)
- 2.0 20v — petrol · 110–113 kW (148–152 hp) · 181–186 Nm (133–137 lb-ft)
- 1.9 JTD — diesel · 77–85 kW (103–114 hp) · 255–275 Nm (188–203 lb-ft)
- 2.4 JTD — diesel · 100–110 kW (134–148 hp) · 304–308 Nm (224–227 lb-ft)
- 2.4 — petrol
- Transmissions
- 5-speed manual · 6-speed manual · 4-speed AISIN automatic
- Drivetrain
- Front-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
