Vehicle

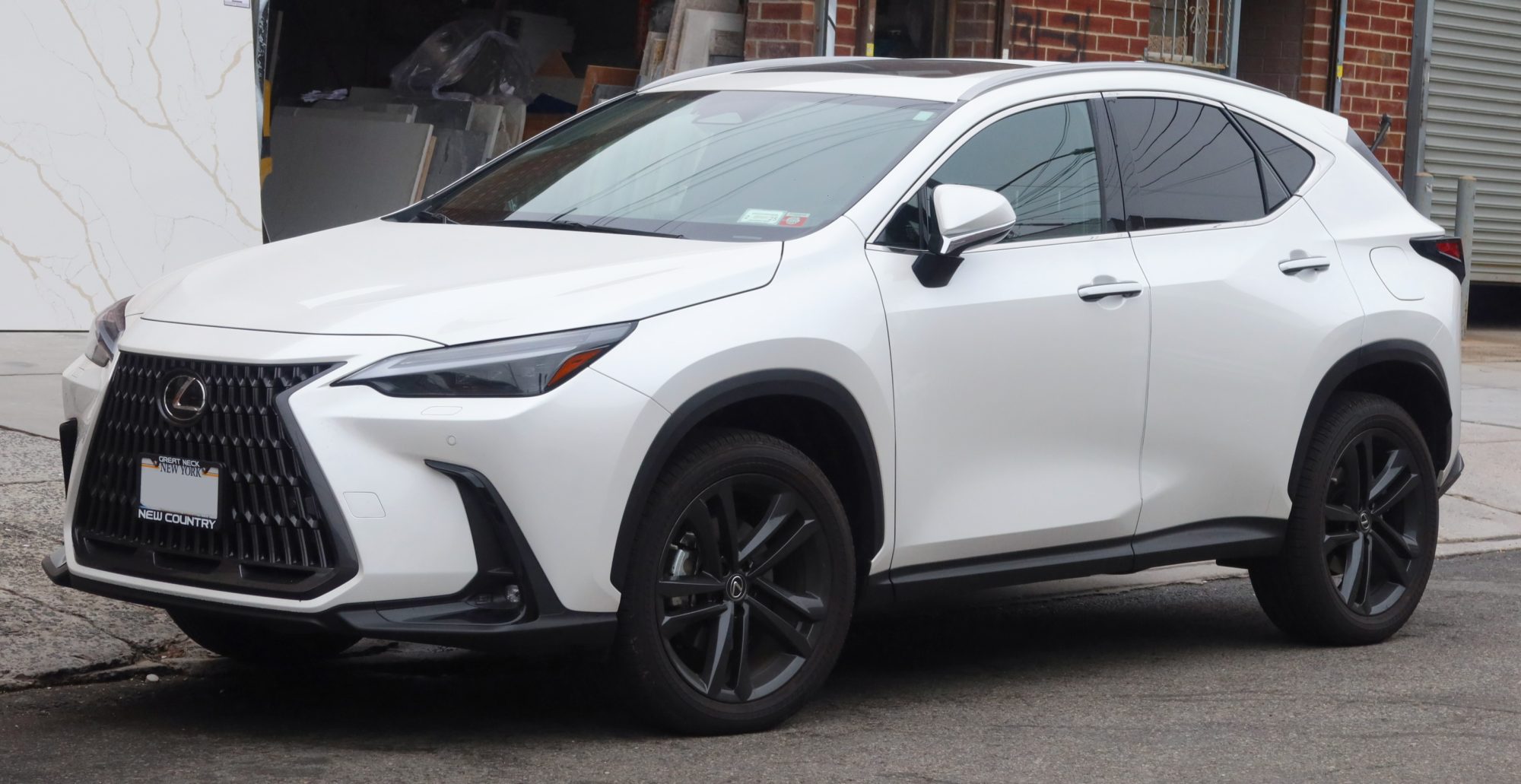

Lexus NX
The compact SUV, on the RAV4's platform of the same generation — so RAV4 knowledge transfers. The 450h+ plug-in version adds an external charging system to a make whose hybrids had never had one, which brings the charging code block into the range for the first time.
Generations
-
AZ10 2014–2021
300h hybrid and the turbocharged 200t.
- Body styles
- SUV
- Platform
- Toyota New MC
- Engines
-
- 2.0 turbo — 8AR-FTS · petrol · 175 kW (235 hp) · 350 Nm (258 lb-ft) · NX 200t and NX 300, 8AR-FTS
- 2.5 hybrid — 2AR-FXE · hybrid · 112–118 kW (150–158 hp) · 206–213 Nm (152–157 lb-ft) · NX 300h
- 2.0 — 3ZR-FAE · petrol · 112–116 kW (150–156 hp) · 192–196 Nm (142–145 lb-ft) · NX 200; ZGZ10
- Transmissions
- e-CVT · 6-speed U661 E/F automatic · CVT
- Drivetrain
- Front-wheel drive · Four-wheel drive
-
AZ20 2021–present
TNGA-K; 350h and the plug-in 450h+.
- Body styles
- SUV
- Platform
- Toyota TNGA-K
- Engines
-
- 2.4 turbo — T24A-FTS · petrol · 205 kW (275 hp) · 430 Nm (317 lb-ft) · NX 350
- 2.5 hybrid — A25A-FXS · hybrid · 140 kW (188 hp) · 239–243 Nm (176–179 lb-ft) · NX 350h
- 2.5 plug-in hybrid — A25A-FXS · plug-in hybrid · 136 kW (182 hp) · 227–228 Nm (167–168 lb-ft) · NX 450h+
- 2.0 — M20A-FKS · petrol · 202–210 Nm (149–155 lb-ft) · Taiwan
- Transmissions
- 8-speed automatic · e-CVT
- Drivetrain
- Front-wheel drive · Four-wheel drive
