Vehicle

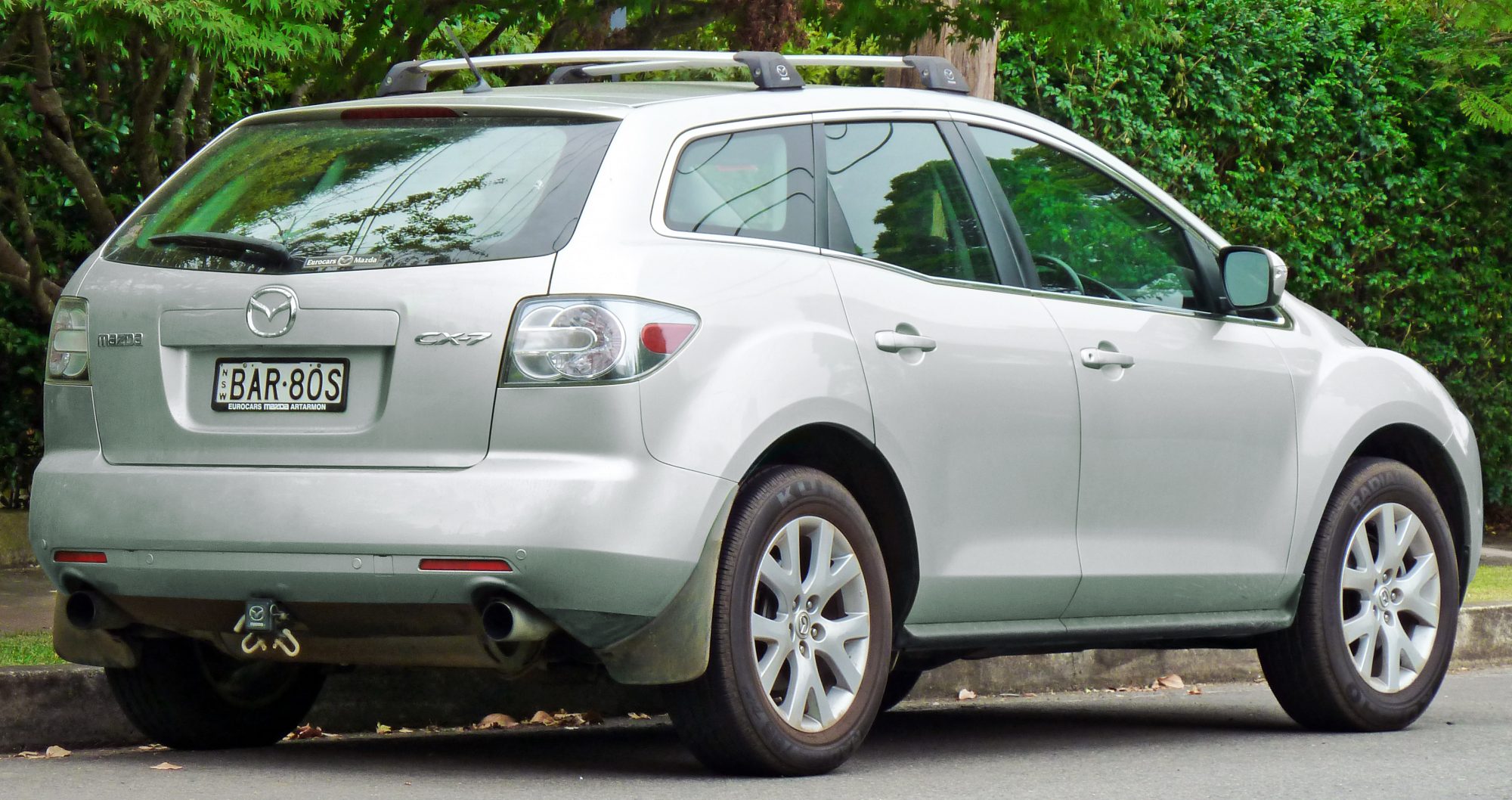

Mazda CX-7
The 2006-2012 crossover, and the model where Mazda's 2.3 DISI turbo engine reached volume — which is where nearly all of its diagnosis lives, because that engine has a well-documented and specific failure chain. The turbocharger is oil-cooled through a feed line that coats with carbon, starving the bearing and destroying the turbo, and the same deposits reach the variable valve timing actuator; the result is a car that sets boost, timing and oil-pressure codes in sequence rather than one clear fault. Oil change interval and the condition of that feed line are the real diagnostic inputs. The naturally aspirated 2.5 fitted later is a different and far less troublesome engine, and the 2.2 diesel sold in Europe carries its own particulate-filter story.
_Classic_wagon_(2011-03-10).jpg){kind=link}
Generations
-
First generation (ER) 2006–2012
The 2.3 DISI turbo's carbon-coked oil feed line starves the turbocharger and sets boost, timing and pressure codes in sequence.
- Body styles
- SUV
- Platform
- Ford CD3
- Engines
-
- 2.3 DISI turbo — L3-VDT · petrol · 196 kW (263 hp) · 380 Nm (280 lb-ft)
- 2.5 four-cylinder — L5-VE · petrol · 125 kW (168 hp) · 226 Nm (167 lb-ft)
- 2.2 MZR-CD — diesel · 127 kW (170 hp) · European market
- Transmissions
- 6-speed manual · 6-speed F21 automatic · 5-speed automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
