Cadillac CTS
The rear-driven executive saloon that carried the make for fifteen years. Its engines are shared with the wider General Motors range — the LFX and LGX V6 above all — so a code here is usually documented under a Chevrolet or a Buick badge in far more detail.
Generations
-
First generation 2003–2007
Sigma platform and rear drive; the CTS-V's LS6 and LS2 make Corvette information the right reference for those cars.
- Gen III small block (LS, 5.3–6.0)
- Gen IV small block (4.8–7.0 LS)
- High Feature V6 (LFX / LY7 / LF1)
- High Value V6 (LX9 / LZ9)
- Body styles
- Sedan
- Platform
- GM Sigma
- Engines
-
- 2.6 V6 — LY9 · petrol
- 3.2 V6 — LA3 · petrol · 164 kW (220 hp)
- 3.6 V6 — LY7 · petrol · 190 kW (255 hp) · 342 Nm (252 lb-ft)
- 5.7 V8 — LS6 · petrol · 298 kW (400 hp) · 536 Nm (395 lb-ft) · LS6, CTS-V
- 2.8 V6 — LP1 · petrol
- 6.0 V8 — LS2 · petrol · 298 kW (400 hp) · 536 Nm (395 lb-ft)
- Transmissions
- 5-speed 5L40-E automatic · 5-speed Getrag 260 manual · 6-speed Aisin AY-6 manual · 6-speed Tremec T-56 manual
- Drivetrain
- Rear-wheel drive
-

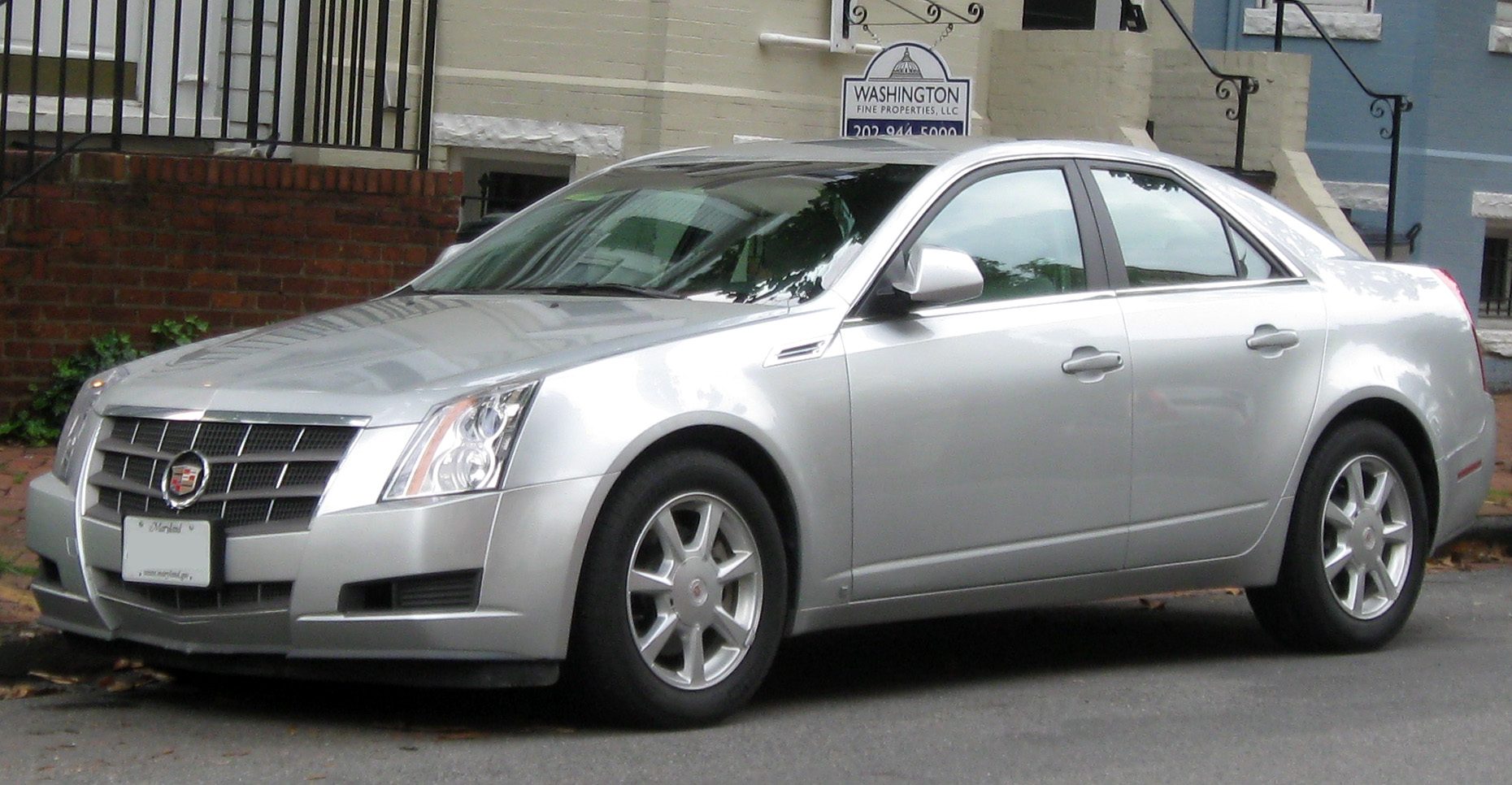

2nd 2007–2014
Direct injection arrives; the supercharged CTS-V sits on top.
- Body styles
- Sedan · Estate · Coupé
- Platform
- GM Sigma II
- Engines
-
- 2.8 V6 — LP1 · petrol
- 3.0 V6 — LF1 · petrol · 201 kW (270 hp) · 304 Nm (224 lb-ft)
- 3.6 V6 — petrol · 229–237 kW (307–318 hp) · 370–372 Nm (273–274 lb-ft)
- 6.2 supercharged V8 — petrol · 415 kW (557 hp) · 747 Nm (551 lb-ft) · CTS-V
- 2.9 V6 turbodiesel — diesel · Europe
- Transmissions
- 6-speed 6L50 automatic · 6-speed 6L90 automatic · 6-speed Aisin AY-6 manual · 6-speed Tremec 6L95M manual
- Drivetrain
- Rear-wheel drive · Four-wheel drive
-
3rd 2013–2019
Alpha platform, twin-turbo V6 at the top of the range.
- 6L80 / 6L90 / 6L45 6-speed automatic
- 8L90 / 8L45 8-speed automatic
- Aisin TL-80SN (AA80E) 8-speed automatic
- Body styles
- Sedan
- Platform
- GM Alpha
- Engines
-
- 2.0 turbo — LTG · petrol · 203 kW (272 hp) · 400 Nm (295 lb-ft)
- 3.6 V6 — LFX · petrol · 239 kW (321 hp) · 372 Nm (274 lb-ft)
- 3.6 twin-turbo V6 — LF3 · petrol · 313 kW (420 hp) · 583 Nm (430 lb-ft) · V-Sport
- 6.2 supercharged V8 — LT4 · petrol · 415–477 kW (557–640 hp) · 854 Nm (630 lb-ft) · CTS-V
- 3.0 — petrol · 6-cylinder, US market 2013-2014
- Transmissions
- 6-speed manual · 6-speed GM 6L45 automatic · 8-speed Aisin TL-80SN automatic · 8-speed GM 8L90 automatic
- Drivetrain
- Rear-wheel drive · Four-wheel drive
