Vehicle

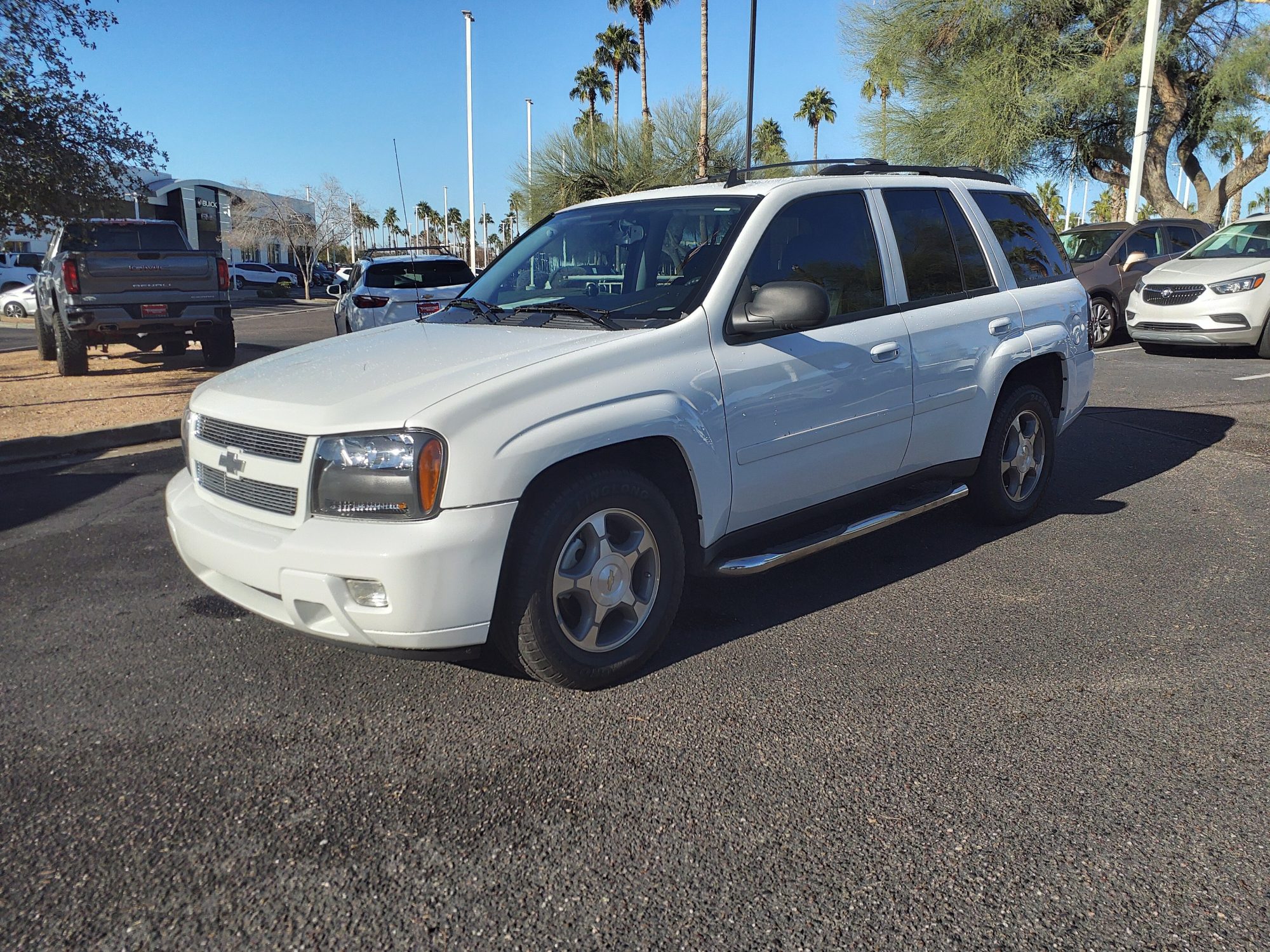

Chevrolet TrailBlazer
Two unrelated vehicles wear this name and the codes do not transfer between them. The 2002-2009 car is a body-on-frame GMT360 SUV whose engine is the 4.2 Atlas straight-six — an unusual, generally durable design, but with a known weakness at the ignition and fuel-level end rather than the mechanical: the instrument cluster stepper motors fail and the fuel pump module reads erratically, both of which arrive looking like sensor faults. It also carries the GMT360's well-documented blower resistor and four-wheel-drive encoder-motor problems. The 2021-on TrailBlazer is a small front-drive crossover with three-cylinder turbo engines and a CVT, sharing nothing with it. Check the year before applying anything you read.
Generations
-
First generation (GMT360) 2002–2009
Body-on-frame SUV with the 4.2 Atlas straight-six; cluster stepper motors, fuel level sending and the four-wheel-drive encoder motor are the recurring faults.
- Body styles
- SUV
- Platform
- GM GMT360
- Engines
-
- 4.2 straight-six — LL8 · petrol · 373–376 Nm (275–277 lb-ft) · LL8 Atlas
- 5.3 V8 — LM4 · petrol · 441 Nm (325 lb-ft) · LM4 and LH6
- 6.0 V8 — LS2 · petrol · 298 kW (400 hp) · 542 Nm (400 lb-ft) · LS2, SS only
- 5.3 V8 — LH6 · petrol · 441 Nm (325 lb-ft)
- Transmissions
- 4-speed 4L60E automatic · 4-speed 4L70E automatic
- Drivetrain
- Rear-wheel drive · Four-wheel drive
-
Second generation (VCDJ) 2021–present
An unrelated front-drive crossover with three-cylinder turbo engines and a CVT — none of the GMT360's information applies.
- Body styles
- SUV
- Platform
- GM VSS-F
- Engines
-
- 1.2 turbo three-cylinder — petrol · LIH
- 1.3 turbo three-cylinder — petrol · L3T
- 3.6 V6 — petrol · 177 kW (237 hp) · 329 Nm (243 lb-ft)
- Transmissions
- CVT · 9-speed automatic · 6-speed manual · 6-speed automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
