Vehicle

Fiat 500X

The small crossover, and mechanically a Jeep Renegade — the same platform, the same MultiAir engines, the same gearboxes. MultiAir is worth knowing about before reading a valve-timing or rough-running code: the intake valves are opened hydraulically under electronic control rather than by a camshaft lobe, so the unit doing the controlling is a place a conventional diagnosis would never look.

WhatsApp Telegram X Email

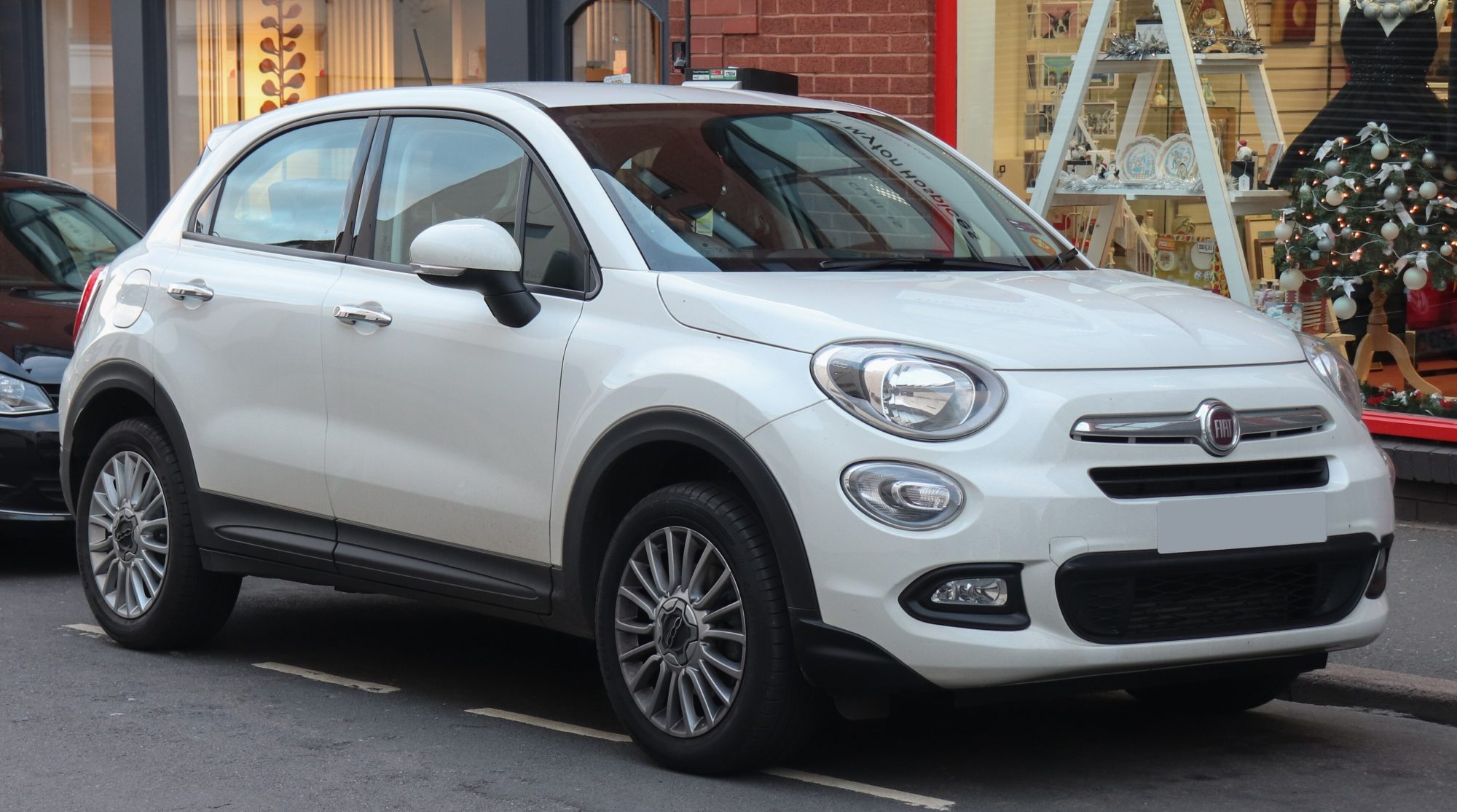

Fiat 500X — Vauxford · CC BY-SA 4.0 (external)

Generations

334 2014–present

A Jeep Renegade underneath, MultiAir engines included — intake valves are opened hydraulically rather than by a camshaft lobe.
Body styles

SUV

Platform

Fiat Small Wide
Engines
1.4 MultiAir — petrol · 100–125 kW (134–168 hp) · 230–249 Nm (170–184 lb-ft)

1.0 turbo — FIREFLY · petrol · 88 kW (118 hp) · 190 Nm (140 lb-ft)

1.3 turbo — FIREFLY · petrol · 110–111 kW (148–149 hp) · 270 Nm (199 lb-ft)

1.6 E-Torq — petrol · 81–82 kW (109–110 hp) · 152 Nm (112 lb-ft)

1.3 Multijet — diesel

1.6 Multijet — diesel · 84–96 kW (113–129 hp) · 320 Nm (236 lb-ft)

2.0 Multijet — diesel · 100–110 kW (134–148 hp) · 350 Nm (258 lb-ft)

1.4 turbo — petrol · 100–125 kW (134–168 hp) · 230–249 Nm (170–184 lb-ft)

2.4 — petrol

1.5 — mild hybrid · 240 Nm (177 lb-ft)
Transmissions

5-speed FPT C510 manual · 6-speed FPT C635 manual · 6-speed FPT C635 DDCT dual-clutch · 9-speed Chrysler/ZF AT9X automatic

Drivetrain

Front-wheel drive · Four-wheel drive

Information, not instruction

CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.

Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
