Vehicle

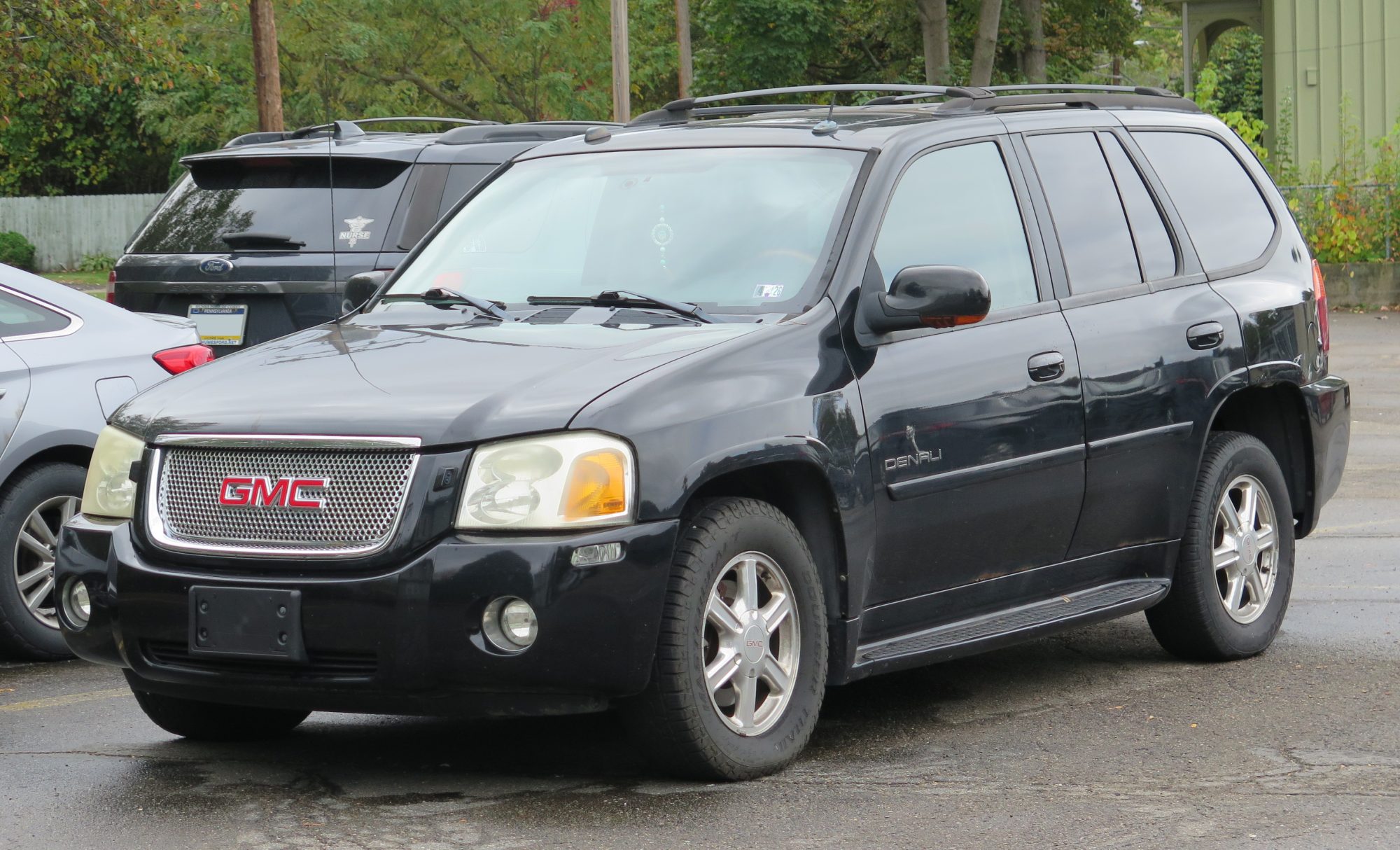

GMC Envoy
The body-on-frame SUV built alongside the Chevrolet TrailBlazer on the GMT360 platform, which is where its information lives — the two are the same vehicle with different trim. The 4.2 Atlas straight-six is the engine most carry, and the recurring faults are the platform's rather than the engine's: instrument-cluster stepper motors that fail and give false gauge readings, a fuel-level sender that reads erratically, the blower resistor and its connector overheating, and the four-wheel-drive encoder motor on the transfer case whose position sensor produces service-4WD warnings with no mechanical fault. Any TrailBlazer bulletin of the same year is worth reading here.
Generations
-
Second generation (GMT360) 2002–2009
The TrailBlazer's twin; cluster stepper motors, the fuel-level sender and the transfer-case encoder motor are the recurring faults.
- Body styles
- SUV
- Platform
- GM GMT360
- Engines
-
- 4.2 straight-six — LL8 · petrol · 373–376 Nm (275–277 lb-ft) · LL8 Atlas
- 5.3 V8 — LM4 · petrol · 216 kW (290 hp) · 441 Nm (325 lb-ft) · LM4 and LH6
- 6.0 V8 — petrol · LQ9, Denali
- Transmissions
- 4-speed 4L60-E automatic
- Drivetrain
- Rear-wheel drive · Four-wheel drive
