Vehicle

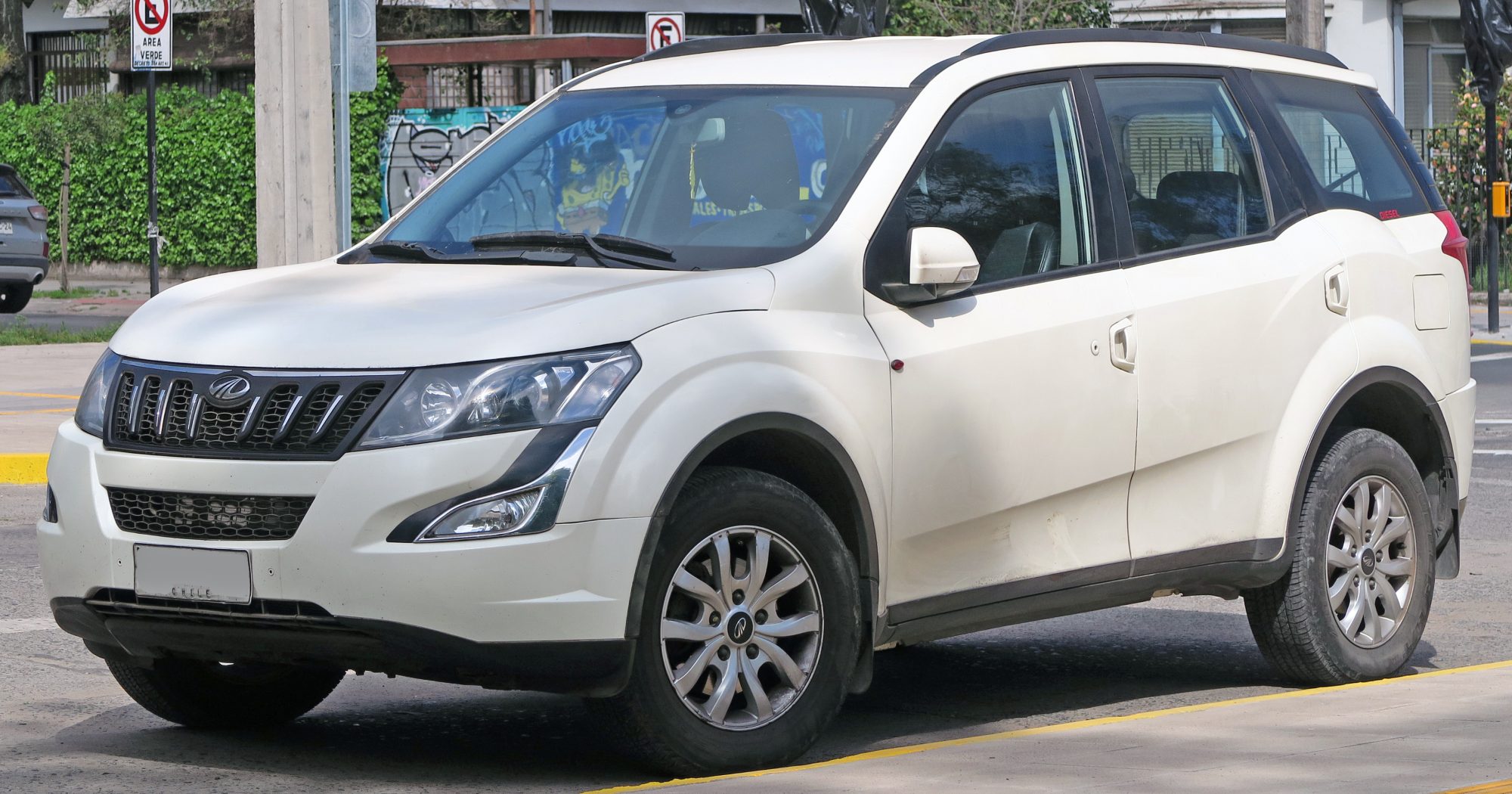

Mahindra XUV500
The monocoque seven-seater that moved Mahindra away from the ladder frame, sold in very large numbers for a decade and replaced by the XUV700. It is the first Mahindra where the electronics matter more than the mechanicals — a full CAN body architecture, an Aisin torque-converter automatic on later cars, and a four-wheel-drive system with no low range, which removes the transfer-case branch that dominates the Scorpio and Bolero beside it.
Its 2.2 mHawk diesel is the engine to establish first, because the name covers three states of tune across the run — a 140, a 155 and, on later BS6 cars, a ~2.0 litre version of the same design taxed as a smaller engine. A power figure alone will not tell you which car you have, and the variable-geometry turbocharger's control strategy differs between them.
The turbocharger and the EGR are the recurring pair. Vanes stick with soot on gently used cars and present as a boost-control code rather than as a noise; EGR fouling shifts flow readings enough to set codes elsewhere. On four-wheel-drive cars the coupling is electronically engaged, so a drivetrain complaint is as likely to be a sensor or a supply as a mechanical failure.
Generations
-
First generation 2011–2021
Mahindra's first monocoque SUV — CAN body electronics, an Aisin automatic and four-wheel drive with no low range.
- Body styles
- SUV
- Engines
-
- 2.2 mHawk — 2.2 mHawk · diesel · 114 kW (153 hp) · 360 Nm (266 lb-ft)
- 2.0 mHawk140 — diesel · 104 kW (140 hp) · 320 Nm (236 lb-ft) · the 1.99-litre mHawk — a destroked version of the 2.2 built to sit under the 2,000 cc limit a 2015 court order placed on new diesels in Delhi, so it is a tax-and-regulation engine rather than a different design
- 2.2 turbo — petrol · 104 kW (140 hp) · 320 Nm (236 lb-ft) · the mHawk G140, a petrol sold only as an automatic from December 2017 — it carries the same 140 hp and 320 Nm as the 1.99 diesel above because Mahindra matched them deliberately, so two rows here reading alike is the badge working as intended and not a duplicated figure
- Transmissions
- 6-speed manual · 6-speed automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
