Vehicle

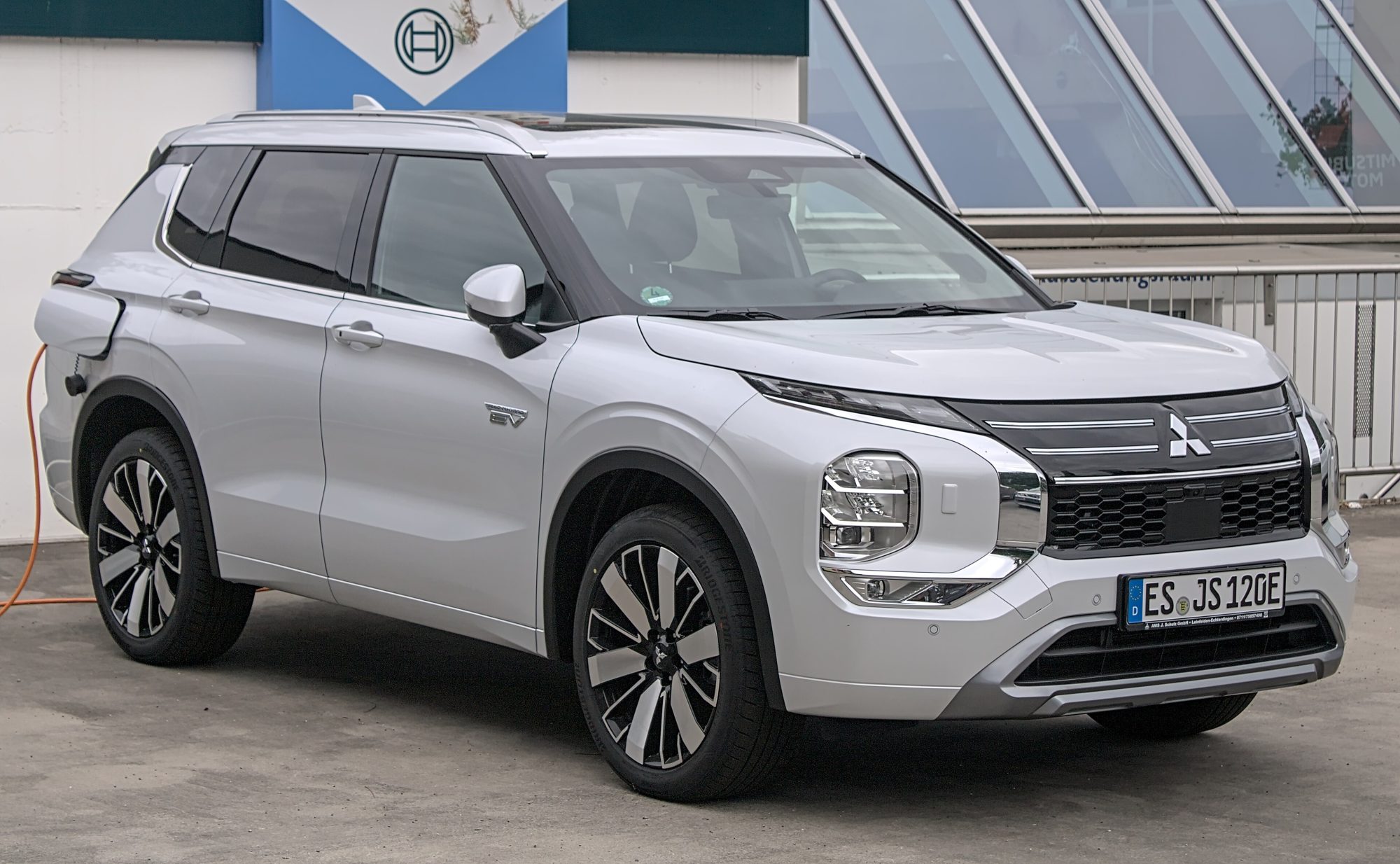

Mitsubishi Outlander
The mid-size SUV, and the most diagnostically interesting car in the range because two versions of it are entirely different machines. The plug-in hybrid has no conventional gearbox, drives its wheels through two motors, and runs its engine as a generator much of the time — so the hybrid and charging code blocks apply to it in full, while the petrol version is a conventional crossover with a CVT. Establish which before reading anything.
_IMG_3129.jpg){kind=link}
Generations
-
CW 2005–2012
4B1-series petrols and a diesel in Europe; conventional drivetrain throughout.
- Body styles
- SUV
- Platform
- Mitsubishi GS
- Engines
-
- 2.0 — 4B11 · petrol · 108–110 kW (145–148 hp)
- 2.4 — 4B12 · petrol · 125 kW (168 hp) · 232 Nm (171 lb-ft)
- 3.0 V6 — 6B31 · petrol · 162–169 kW (217–227 hp) · 276–291 Nm (204–215 lb-ft)
- 2.0 DI-D — diesel
- 2.2 DI-D — DW12 · diesel · 115 kW (154 hp)
- 2.3 — 4N14 · diesel · 103–130 kW (138–174 hp) · 380 Nm (280 lb-ft)
- Transmissions
- 5-speed manual · 6-speed manual · 6-speed automatic · CVT
- Drivetrain
- Front-wheel drive · Four-wheel drive
-
GF 2012–2021
The generation that introduced the plug-in hybrid at volume — one of the first PHEVs anywhere to reach ordinary workshops.
- Belt CVT (continuously variable) CVT
- Jatco JF016E CVT
- Single-speed reduction gear (EV drive unit) reduction
- Body styles
- SUV
- Platform
- Mitsubishi GS platform
- Engines
-
- 2.0 — 4J11 · petrol
- 4J12 2.4 — 4J12 · petrol
- 2.0 PHEV — 4B11 · plug-in hybrid · no conventional gearbox; two motors, and the engine often a generator
- 2.2 DI-D — 4N14 · diesel
- 2.4 — 4B12 · petrol · 99–125 kW (133–168 hp) · 211–222 Nm (156–164 lb-ft)
- 3.0 V6 — 6B31 · petrol · 162–169 kW (217–227 hp) · 276–291 Nm (204–215 lb-ft)
- Transmissions
- 6-speed manual · CVT · Single-speed reduction · 5-speed manual · 6-speed automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
-
GN 2021–present
Nissan-derived platform; the plug-in hybrid continues with a larger engine and battery.
- Body styles
- SUV
- Platform
- Renault–Nissan CMF-C/D
- Engines
-
- 2.5 — PR25DD · petrol · 135 kW (181 hp) · 245 Nm (181 lb-ft)
- 2.4 PHEV — 4B12 · plug-in hybrid
- 1.5 turbo — 4B40 · mild hybrid · 280 Nm (207 lb-ft) · mild hybrid
- Transmissions
- CVT · Single-speed reduction · Jatco CVT8 INVECS-III CVT
- Drivetrain
- Front-wheel drive · S-AWC four-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
