Vehicle
Opel Zafira
The seven-seat MPV, on the Astra's platform of its generation — so Astra knowledge applies directly. Family duty means short journeys at low load, which is the usual explanation for a diesel's particulate-filter codes here rather than anything mechanical.
_%E2%80%93_Frontansicht,_23._Mai_2013,_Heiligenhaus.jpg){kind=link}
Generations
-
B 2005–2014
Astra H underneath; petrol and CDTi diesel.
- Body styles
- MPV
- Platform
- GM Delta
- Engines
-
- 1.6 petrol — petrol · 85 kW (114 hp) · 155 Nm (114 lb-ft)
- 1.8 petrol — petrol · 85–103 kW (114–138 hp)
- 2.2 petrol — petrol · 110 kW (148 hp) · 215 Nm (159 lb-ft)
- 2.0 turbo — Z20LEH · petrol · 177 kW (237 hp) · 320 Nm (236 lb-ft) · OPC and VXR
- 1.6 CNG — CNG bi-fuel · 110 kW (148 hp)
- 1.7 CDTi — diesel · 81–92 kW (109–123 hp) · 260–280 Nm (192–207 lb-ft)
- 1.9 CDTi — diesel · 88–110 kW (118–148 hp) · 280–320 Nm (207–236 lb-ft)
- Transmissions
- 5-speed manual · 6-speed manual · 4-speed automatic · 6-speed automatic · 5-speed Easytronic
- Drivetrain
- Front-wheel drive
-

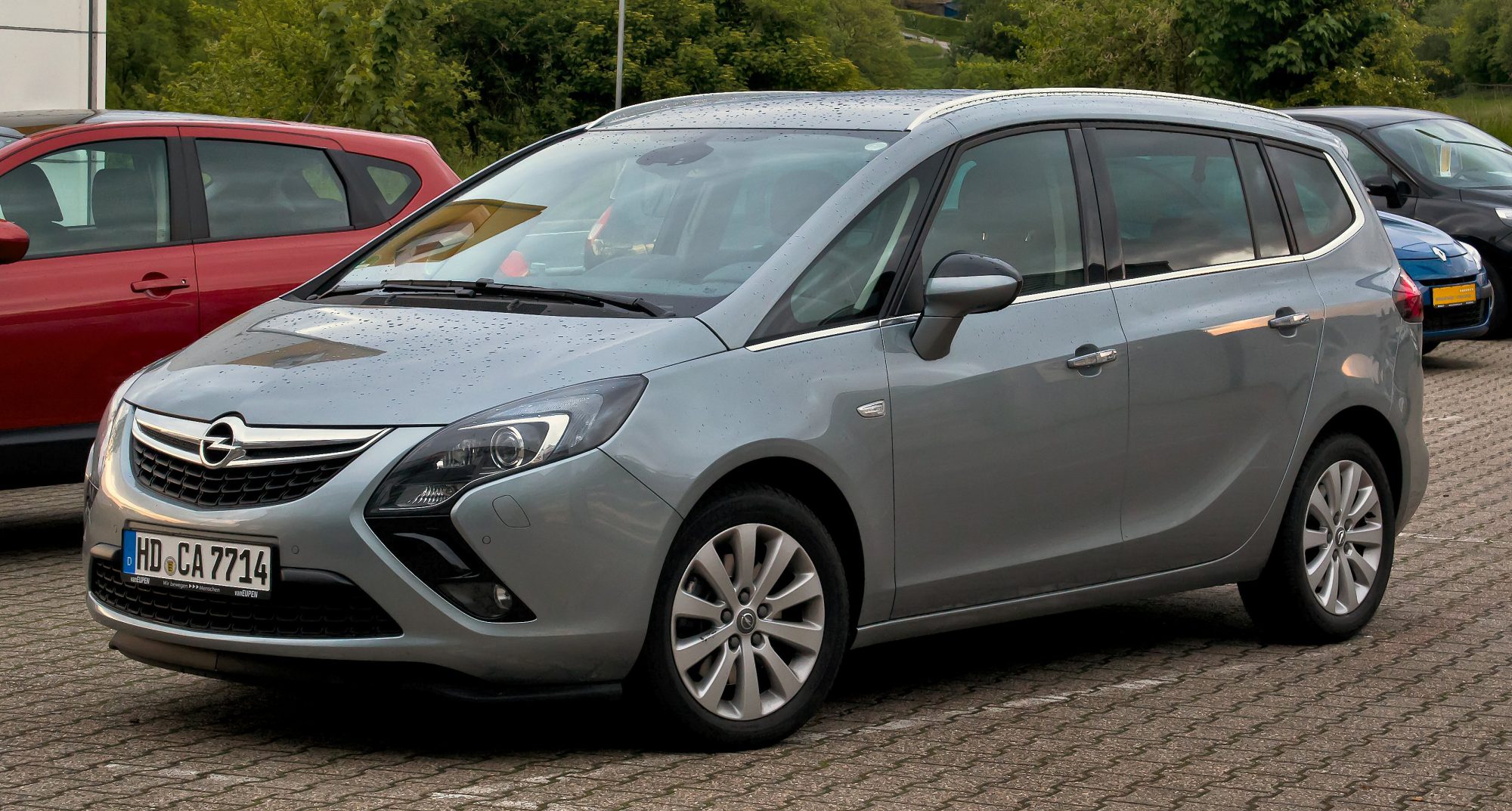

C 2011–2019
Zafira Tourer, on the Astra J platform.
- Body styles
- MPV
- Platform
- GM Delta II
- Engines
-
- 1.4 turbo — A14NEL · petrol · 88–103 kW (118–138 hp) · 200 Nm (148 lb-ft)
- 1.6 turbo — petrol · 100–147 kW (134–197 hp) · 240–280 Nm (177–207 lb-ft)
- 1.8 petrol — petrol · 85 kW (114 hp) · 175 Nm (129 lb-ft)
- 1.6 CNG — CNG bi-fuel · 110 kW (148 hp) · 210 Nm (155 lb-ft)
- 1.6 CDTi — diesel · 88–100 kW (118–134 hp) · 320 Nm (236 lb-ft)
- 2.0 CDTi — diesel · 81–143 kW (109–192 hp) · 260–400 Nm (192–295 lb-ft)
- 1.4 — A14NET · petrol · 88–103 kW (118–138 hp) · 200 Nm (148 lb-ft)
- Transmissions
- 6-speed manual · 6-speed automatic · 5-speed manual
- Drivetrain
- Front-wheel drive
