Vehicle

Toyota Fortuner

The body-on-frame SUV built on the Hilux's IMV platform and sold across Asia, Africa, the Middle East and South America — sold as the SW4 in Brazil. Hilux information covers nearly all of it, which is the most useful thing to know, because the Fortuner's own documentation is thin in Western sources while the Hilux's is not. The 2.8 GD 1GD-FTV is the engine most have, and its diesel particulate filter on dusty, low-speed duty is the usual reason one gets scanned.

WhatsApp Telegram X Email

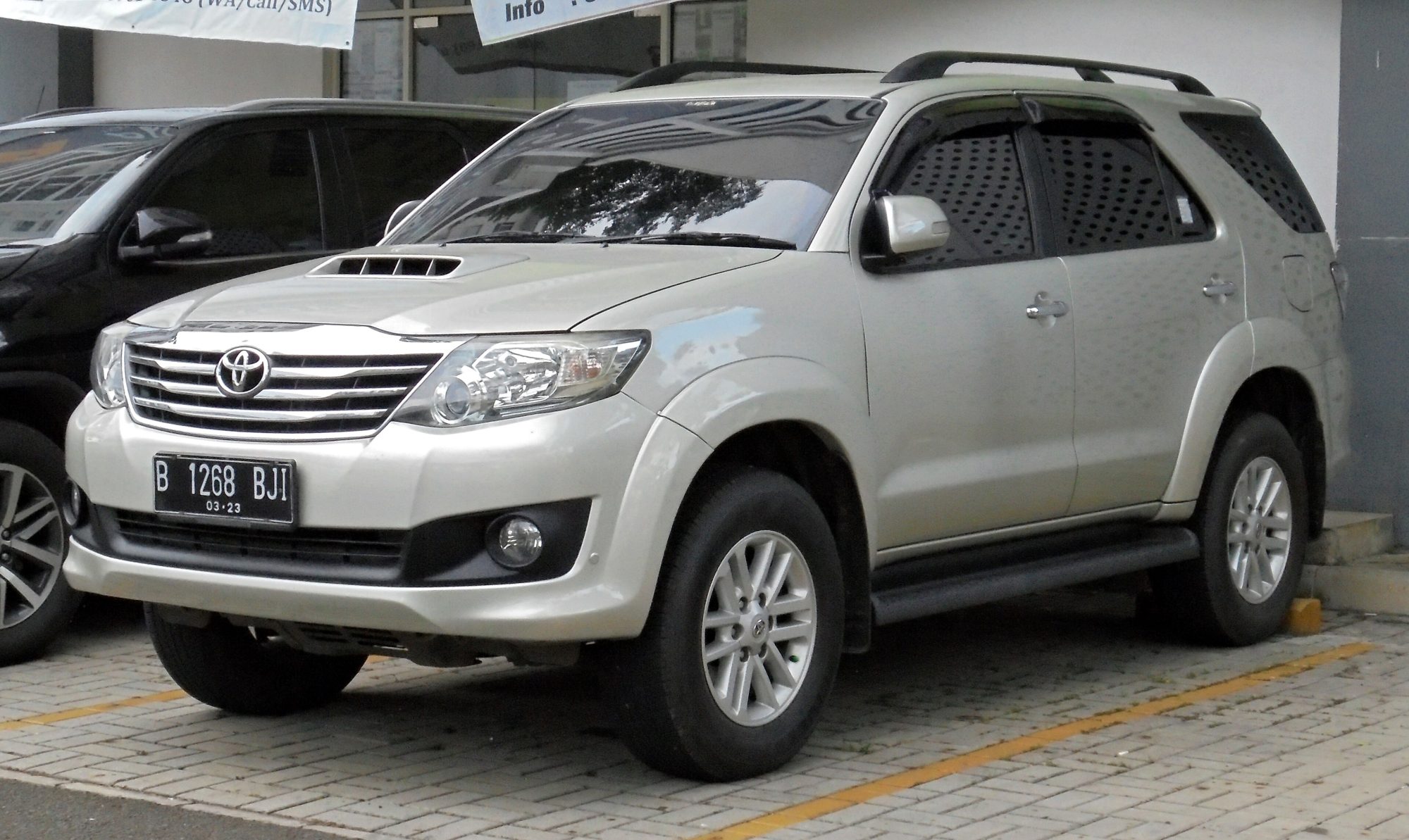

Toyota Fortuner — Wilzz99 · CC BY-SA 4.0 (external)

Generations

AN50/AN60 2004–2015

The Hilux IMV platform under an SUV body; Hilux information covers the powertrain almost completely.
Body styles

SUV

Platform

Toyota IMV
Engines
2.7 2TR-FE — 2TR-FE · petrol

4.0 V6 — 1GR-FE · petrol · 177–199 kW (237–267 hp) · 361–380 Nm (266–280 lb-ft)

2.5 D-4D — 2KD-FTV · diesel · 75–107 kW (101–143 hp) · 192–343 Nm (142–253 lb-ft)

3.0 D-4D — 1KD-FTV · diesel · 100–140 kW (134–188 hp) · 280–420 Nm (207–310 lb-ft)

2.7 — 2TR-FBE · petrol · TGN51/61

3.0 — 5L-E · diesel · LAN50
Transmissions

5-speed manual · 4-speed automatic · 5-speed automatic

Drivetrain

Rear-wheel drive · Part-time four-wheel drive with low range
AN160 2015–present

The GD engine family arrives; the particulate filter on dusty low-speed duty is the usual reason one is scanned.
Body styles

SUV

Platform

Toyota IMV
Engines
2.7 — 2TR-FE · petrol

4.0 V6 — 1GR-FE · petrol · 177–199 kW (237–267 hp) · 361–380 Nm (266–280 lb-ft)

2.4 GD — 2GD-FTV · diesel · 400 Nm (295 lb-ft)

2.8 GD — 1GD-FTV · diesel · 300–550 Nm (221–406 lb-ft)

2.5 turbo — 2KD-FTV · diesel · 75–107 kW (101–143 hp) · 192–343 Nm (142–253 lb-ft) · KUN155/165

3.0 — 5L-E · diesel · LAN155

3.0 turbo — 1KD-FTV · diesel · 100–140 kW (134–188 hp) · 280–420 Nm (207–310 lb-ft) · KUN156/166
Transmissions

5-speed R151/R151F manual · 6-speed RC60 manual · 5-speed A750F automatic · 6-speed AC60E/AC60F automatic

Drivetrain

Rear-wheel drive · Part-time four-wheel drive with low range

Service information

Toyota Technical Information System (TIS) (external) — Workshop literature

Information, not instruction

CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.

Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
