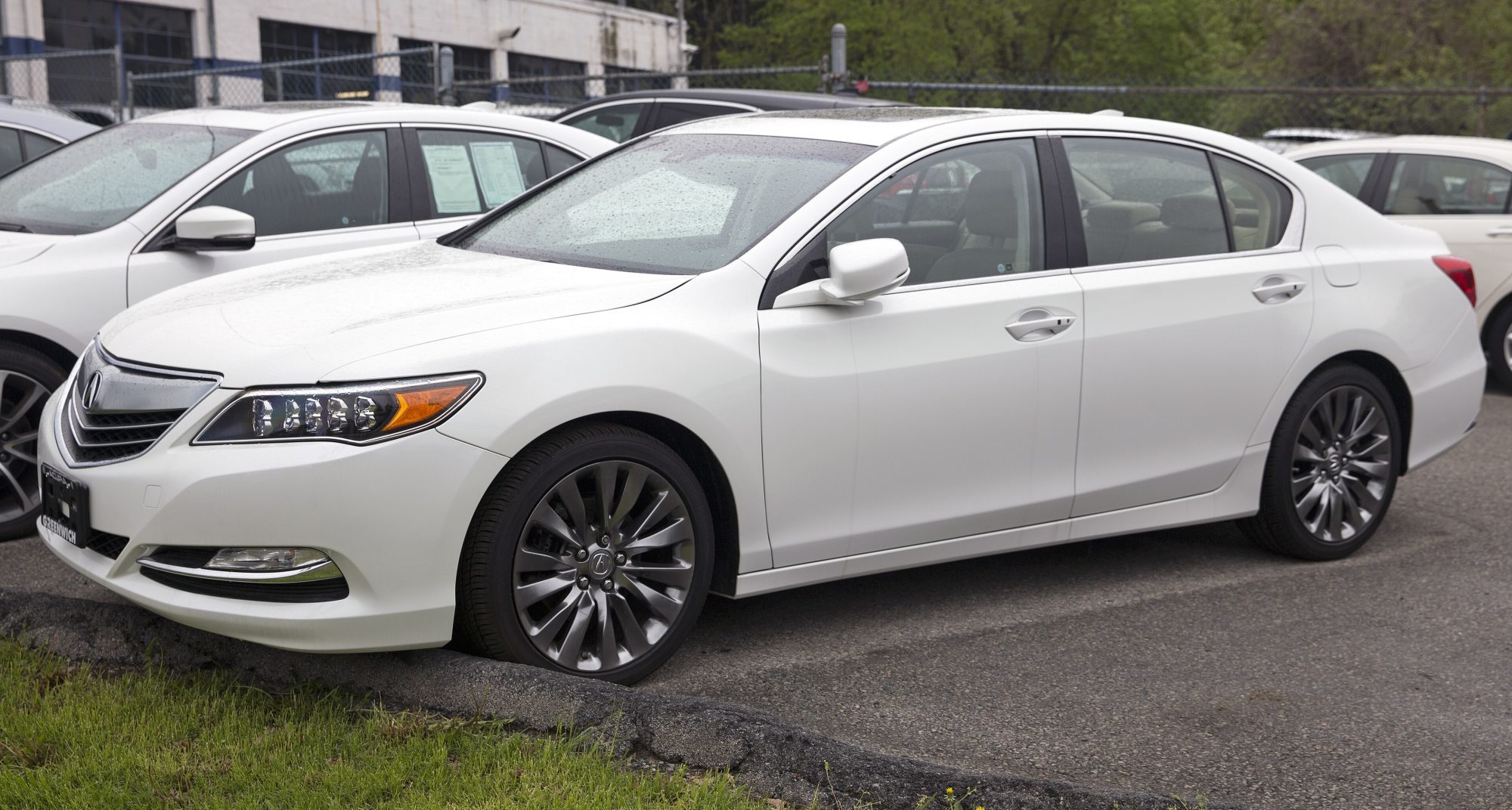

Acura RLX
Acura's flagship saloon under three names — Legend, then RL, then RLX — and one continuous car in Japan, where it stayed the Honda Legend throughout. The RL of 2005-2012 introduced SH-AWD, a rear differential that actively over-drives the outside wheel, and its clutch packs and control unit are the fault family that defines the car; the RLX Sport Hybrid replaced that mechanism entirely with two rear electric motors doing the same job, which is a completely different diagnosis on a system with the same name. Establish which before touching a torque-vectoring complaint.
Generations
-
KA9 (RL) 1995–2004
The first RL, a rebadged Honda Legend with the C35A V6 and front-wheel drive. Straightforward beside what followed.
- Body styles
- Sedan
- Platform
- Honda KA9
- Engines
-
- 3.5 V6 — C35A · petrol · 157 kW (210 hp) · 304–312 Nm (224–230 lb-ft)
- Transmissions
- 4-speed automatic
- Drivetrain
- Front-wheel drive
-
KB1 and KB2 (RL) 2004–2012
SH-AWD as standard, with a mechanical rear unit that over-drives the outside wheel. The 2009 facelift raises the engine to 3.7.
- Body styles
- Sedan
- Platform
- Honda KB
- Engines
-
- 3.5 V6 — J35A8 · petrol · 224 kW (300 hp)
- 3.7 V6 — J37A5 · petrol · 224 kW (300 hp) · 2009 facelift
- 3.7 V6 — J37A2 · petrol
- Transmissions
- 5-speed automatic
- Drivetrain
- All-wheel drive
-
KC1 and KC2 (RLX) 2013–2020
Front-drive with four-wheel steering, or the Sport Hybrid whose SH-AWD is two rear electric motors rather than a differential — the same badge on two unrelated systems.
- Body styles
- Sedan
- Platform
- Honda KC
- Engines
-
- 3.5 V6 — J35Y4 · petrol · 231 kW (310 hp) · 369 Nm (272 lb-ft)
- 3.5 V6 hybrid Sport Hybrid SH-AWD — J35Y5 · hybrid · 281 kW (377 hp) combined · three motors
- Transmissions
- 6-speed automatic · 7-speed dual-clutch · 10-speed automatic · 7-Speed DCT Motor-Integrated
- Drivetrain
- Front-wheel drive · All-wheel drive
