Vehicle

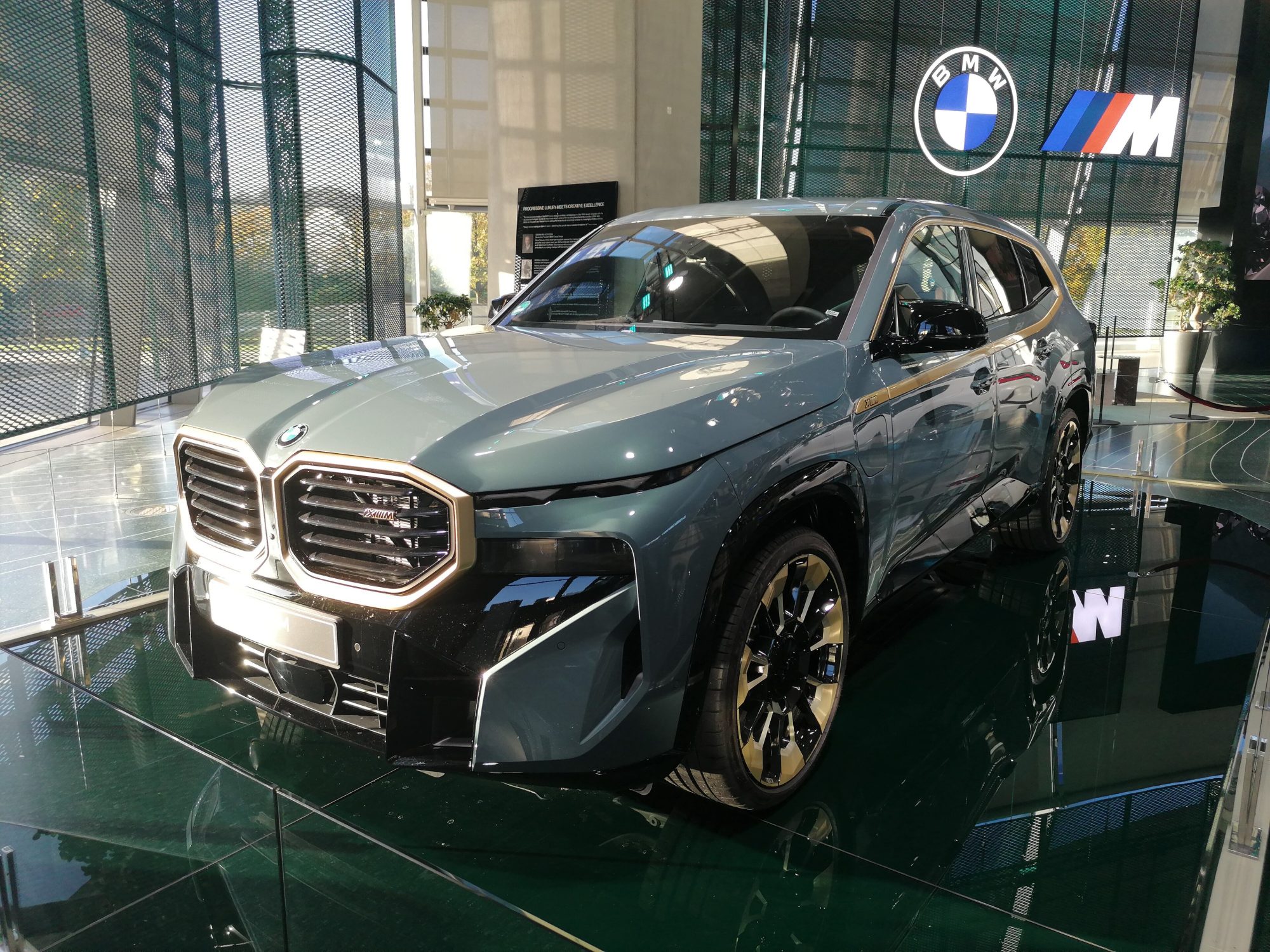

BMW XM
The plug-in hybrid performance SUV, and the only M car since the M1 with no combustion-only sibling. Its interest is the powertrain: a 4.4 twin-turbo V8 with the electric motor built into the eight-speed automatic, drawing on a 25.7 kWh usable pack — so unlike most plug-in hybrids the electric machine sits inside the gearbox housing, and a fault there is a transmission job rather than an axle one. High-voltage precautions therefore apply to work that otherwise looks entirely ordinary.
Generations
-
G09 2022–present
The electric motor lives inside the eight-speed automatic, so high-voltage precautions apply to what otherwise looks like ordinary gearbox work.
- Body styles
- SUV
- Platform
- BMW CLAR
- Engines
-
- 4.4 twin-turbo V8 — S68 · plug-in hybrid · 480 kW (644 hp) combined · 25.7 kWh usable; the motor is integrated into the gearbox
- 3.0 turbo straight-six — B58 · plug-in hybrid · XM 50e
- Transmissions
- 8-speed ZF 8HP automatic
- Drivetrain
- Four-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
