Vehicle

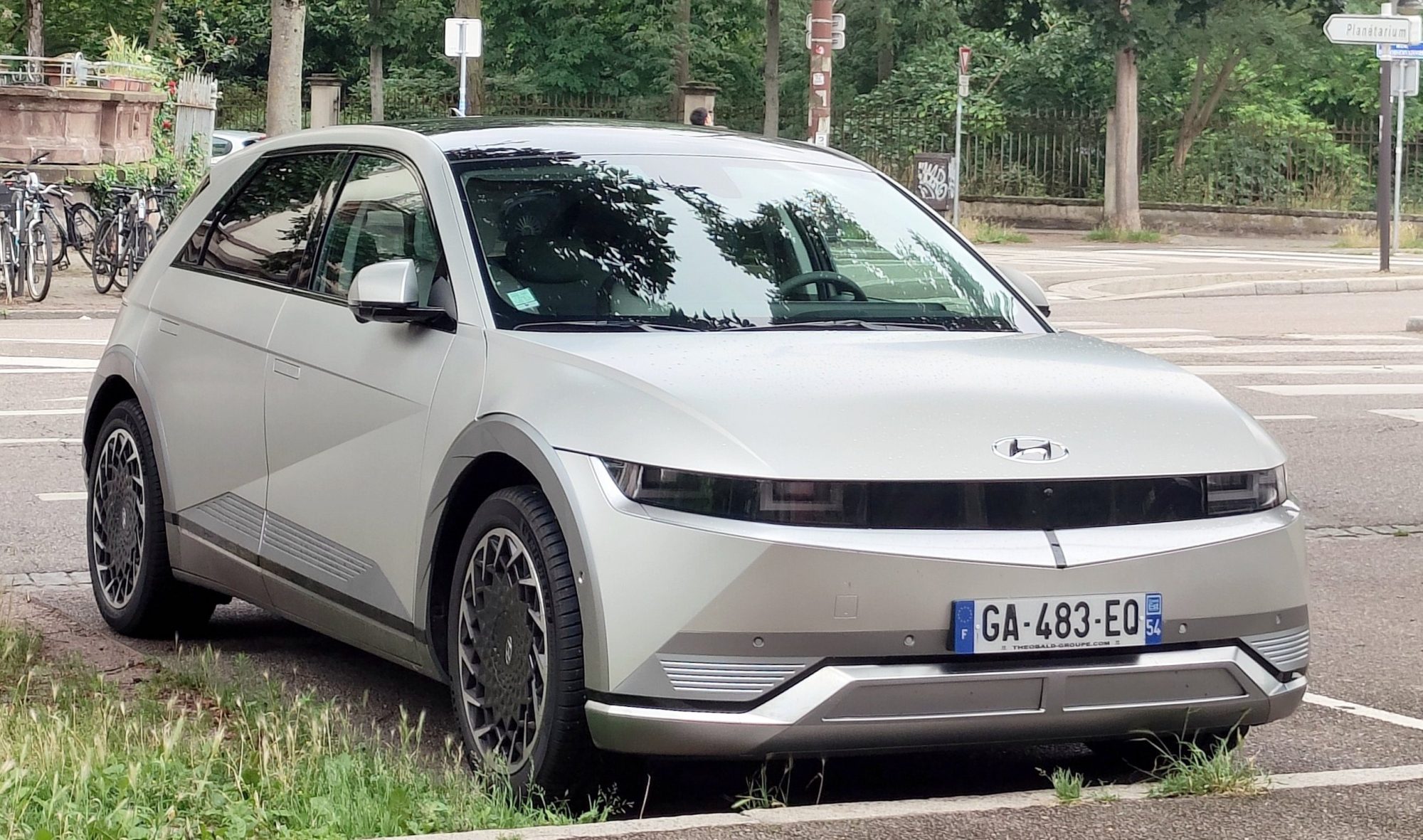

Hyundai Ioniq 5
The battery electric on E-GMP, and the platform's defining feature changes the diagnosis: it is an 800-volt architecture, roughly double the system voltage of most electric cars here, which means the isolation, contactor and insulation-monitoring codes concern a system where the safety margins and the test equipment both differ. It also charges at 400 volts by using the drive motor and inverter as a boost converter, so a charging fault can be a motor or inverter fault rather than a charger one.
_front_view.jpg){kind=link}
Generations
-
NE 2021–present
An 800-volt E-GMP car that boosts 400-volt charging through the drive motor — so charging and drive faults can share hardware.
- Body styles
- Hatchback · SUV
- Platform
- Hyundai E-GMP
- Engines
-
- 58 kWh electric — electric
- 72.6 kWh electric — electric
- 77.4 kWh electric — electric
- 84 kWh electric — electric
- Electric motor — EM07 · electric · EM07/EM17 permanent magnet synchronous motor
- Transmissions
- Single-speed reduction · 2-speed rear transmission
- Drivetrain
- Rear-wheel drive · Four-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
