Vehicle

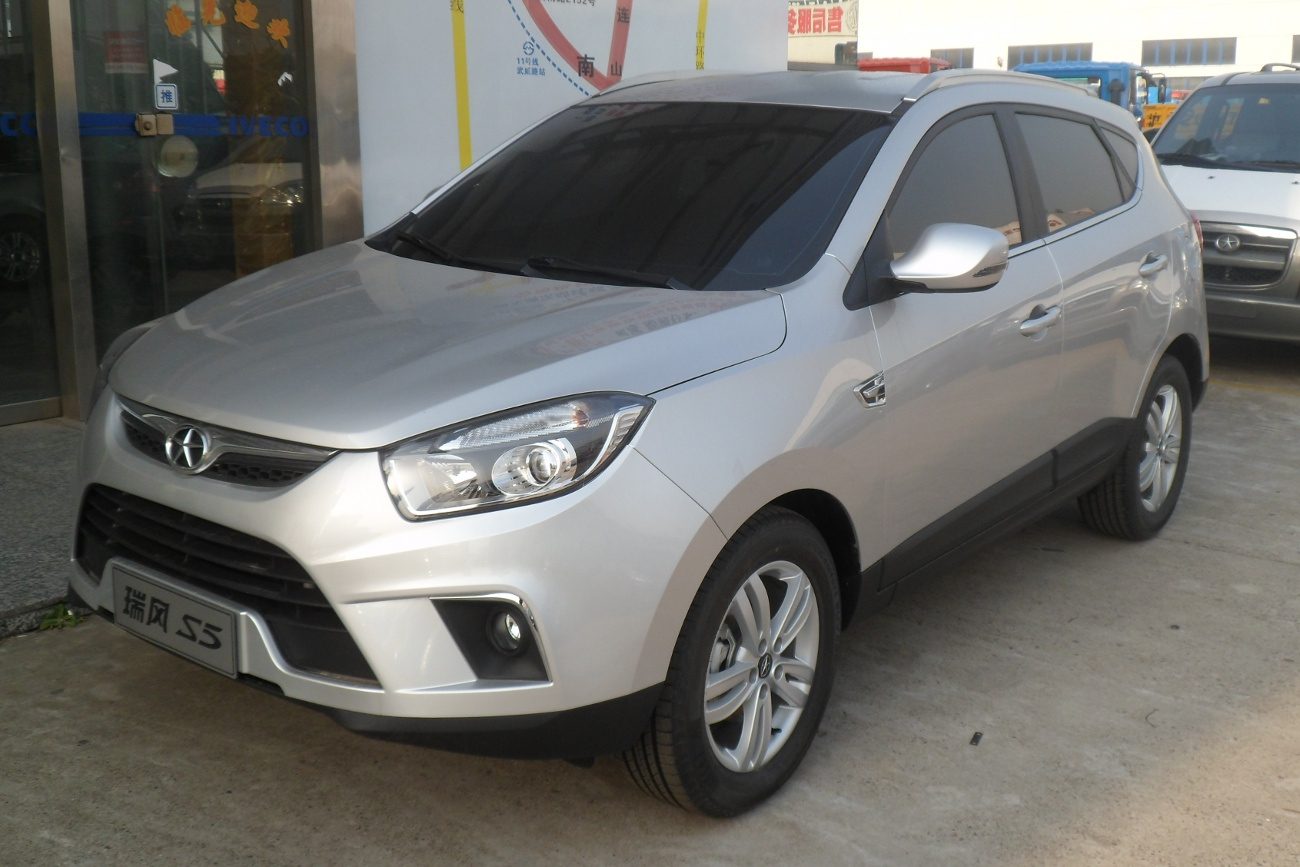

JAC S5
The mid-size crossover, assembled locally in Iran and Brazil among other markets and the model most people mean by the badge. The engine decides the diagnosis: the naturally aspirated 2.0 is a Mitsubishi 4G-family design built under licence, so Mitsubishi documentation describes it — valve clearances, timing balance shafts and sensor locations all transfer. The 1.5 turbo that replaced it is JAC's own and that cross-reference stops working, which is exactly the kind of split that sends a diagnosis to the wrong manual if the engine is not identified first. The recurring items are ignition coils, the electronic throttle body, and on turbo cars the wastegate actuator.
Generations
-
First generation 2013–present
The 2.0 is a licensed Mitsubishi 4G and its documentation applies; the 1.5 turbo is JAC's own and it does not.
- Body styles
- SUV
- Platform
- JAC S5
- Engines
-
- 2.0 four-cylinder — petrol · Mitsubishi 4G63-derived
- 1.5 turbo four-cylinder — petrol
- 2.0 turbo four-cylinder — petrol
- 1.5 — petrol
- Transmissions
- 5-speed manual · 6-speed manual · 6-speed dual-clutch · CVT
- Drivetrain
- Front-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
