Vehicle
Opel Corsa
The supermini, and the clearest example of the fact that governs every recent Opel: the badge stayed and the engineering changed underneath it. A Corsa up to 2019 is a General Motors car with GM engines and GM diagnostics; a Corsa from 2019 is a Peugeot 208 with PSA engines. Establishing the year decides which half of the automotive world the diagnosis belongs to.
Generations
-
D 2006–2014
GM era; the 1.3 CDTi is a Fiat MultiJet under licence, which is where its knowledge lives.
- 1.3 MultiJet 1.2 L
- 1.7 CDTi (CDTi diesels, 1.6 and 1.7) 1.7 L
- CDTi (badge, not an engine)
- Ecotec Z-family
- S-TEC / Family 0
- Body styles
- Hatchback
- Platform
- GM Gamma
- Engines
-
- 1.0 three-cylinder — A10XEP · petrol · 48–66 kW (64–89 hp)
- 1.2 petrol — A12XER · petrol · 51–63 kW (68–84 hp) · 115 Nm (85 lb-ft)
- 1.4 petrol — A14XEL · petrol · 64–88 kW (86–118 hp) · 130 Nm (96 lb-ft)
- 1.6 turbo — A16LER · petrol · 110–155 kW (148–208 hp) · 230 Nm (170 lb-ft) · OPC and VXR
- 1.3 CDTi — diesel
- 1.7 CDTi — diesel · 96 kW (129 hp) · 300 Nm (221 lb-ft)
- 1.4 turbo — A14NEL · petrol · 64–88 kW (86–118 hp) · 175 Nm (129 lb-ft)
- 1.25 — diesel
- Transmissions
- 5-speed manual · 6-speed manual · Easytronic automated manual · 5/6-speed manual · 4-speed Aisin AF13 automatic
- Drivetrain
- Front-wheel drive
-
E 2014–2019
The last GM generation; 1.0 and 1.4 petrol.
- Body styles
- Hatchback
- Platform
- GM Gamma
- Engines
-
- 1.0 turbo three-cylinder — B10XFL · petrol · 48–85 kW (64–114 hp) · 170 Nm (125 lb-ft)
- 1.2 petrol — A12XEL · petrol · 51–63 kW (68–84 hp) · 115 Nm (85 lb-ft)
- 1.4 petrol — A14XEL · petrol · 55–74 kW (74–99 hp) · 130 Nm (96 lb-ft)
- 1.4 — A14XFR · petrol · 55–74 kW (74–99 hp) · 130 Nm (96 lb-ft)
- 1.6 turbo — A16LES · petrol · 141–155 kW (189–208 hp) · OPC and VXR
- 1.3 CDTi — diesel · 55–70 kW (74–94 hp) · 190–210 Nm (140–155 lb-ft)
- Transmissions
- 5-speed manual · 6-speed manual · Easytronic automated manual · 6-speed automatic · 5/6-speed manual
- Drivetrain
- Front-wheel drive
-

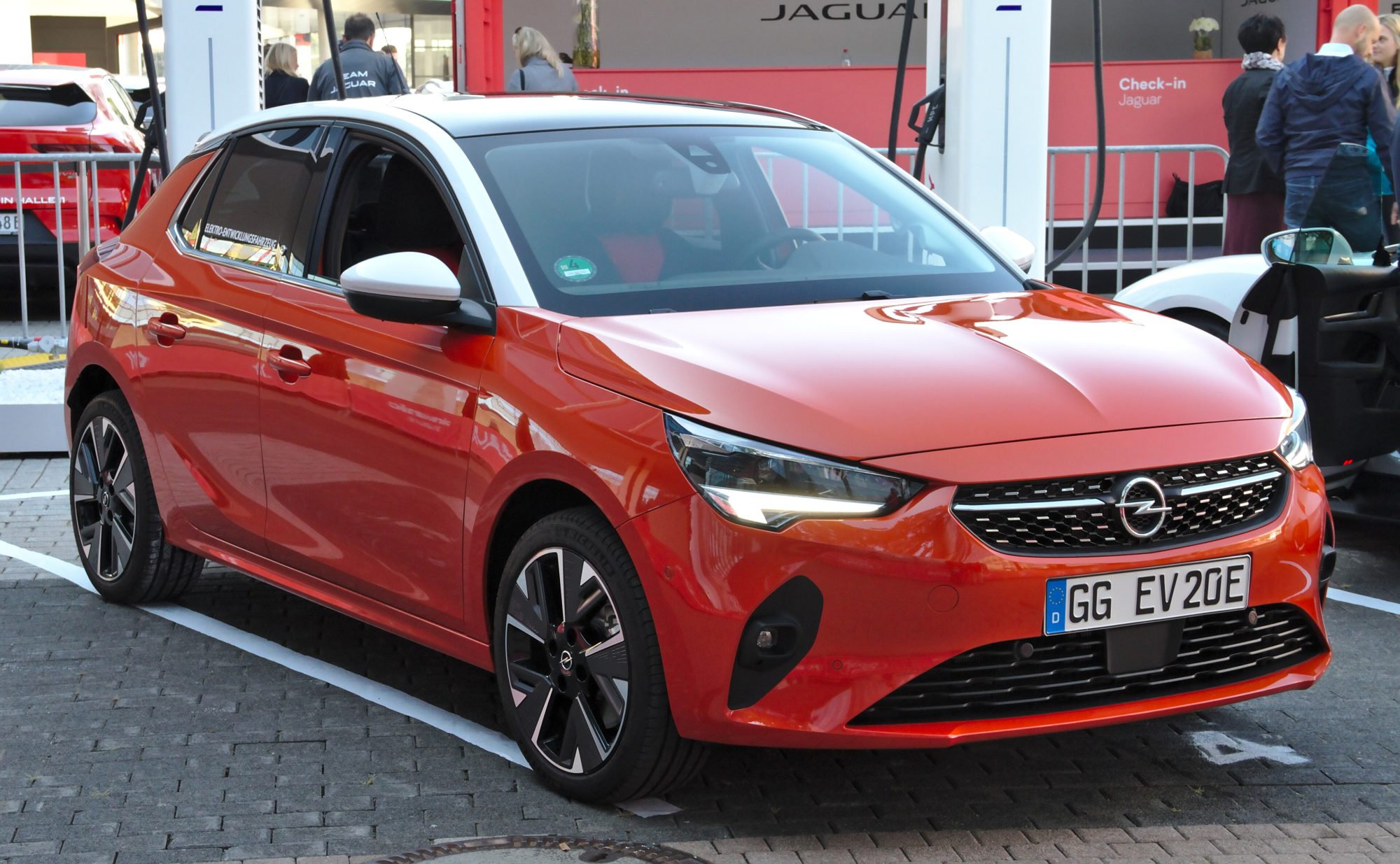

F 2019–present
PSA CMP platform — PureTech and BlueHDi, and an electric version. A Peugeot 208 diagnosis applies.
- PSA e-DCT 6-speed dual-clutch
- PSA MB6 / ML6 6-speed manual
- Single-speed reduction gear (EV drive unit) reduction
- Body styles
- Hatchback
- Platform
- CMP
- Engines
-
- 1.2 PureTech — EB2FA · petrol · 55–96 kW (74–129 hp) · 118–230 Nm (87–170 lb-ft) · wet timing belt — the PSA engine, not a GM one
- 1.5 BlueHDi — DV5 · diesel · 75 kW (101 hp) · 250 Nm (184 lb-ft)
- Corsa-e — electric
- 1.2 turbo — EB2ADTD · petrol · 74–96 kW (99–129 hp) · 205–230 Nm (151–170 lb-ft)
- Transmissions
- 5-speed manual · Single-speed reduction · 5-speed PSA MA manual · 6-speed PSA MB6 manual · 8-speed Aisin AWF8F automatic · 6 speed PSA e-DCT · 1-speed fixed gear ratio
- Drivetrain
- Front-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
