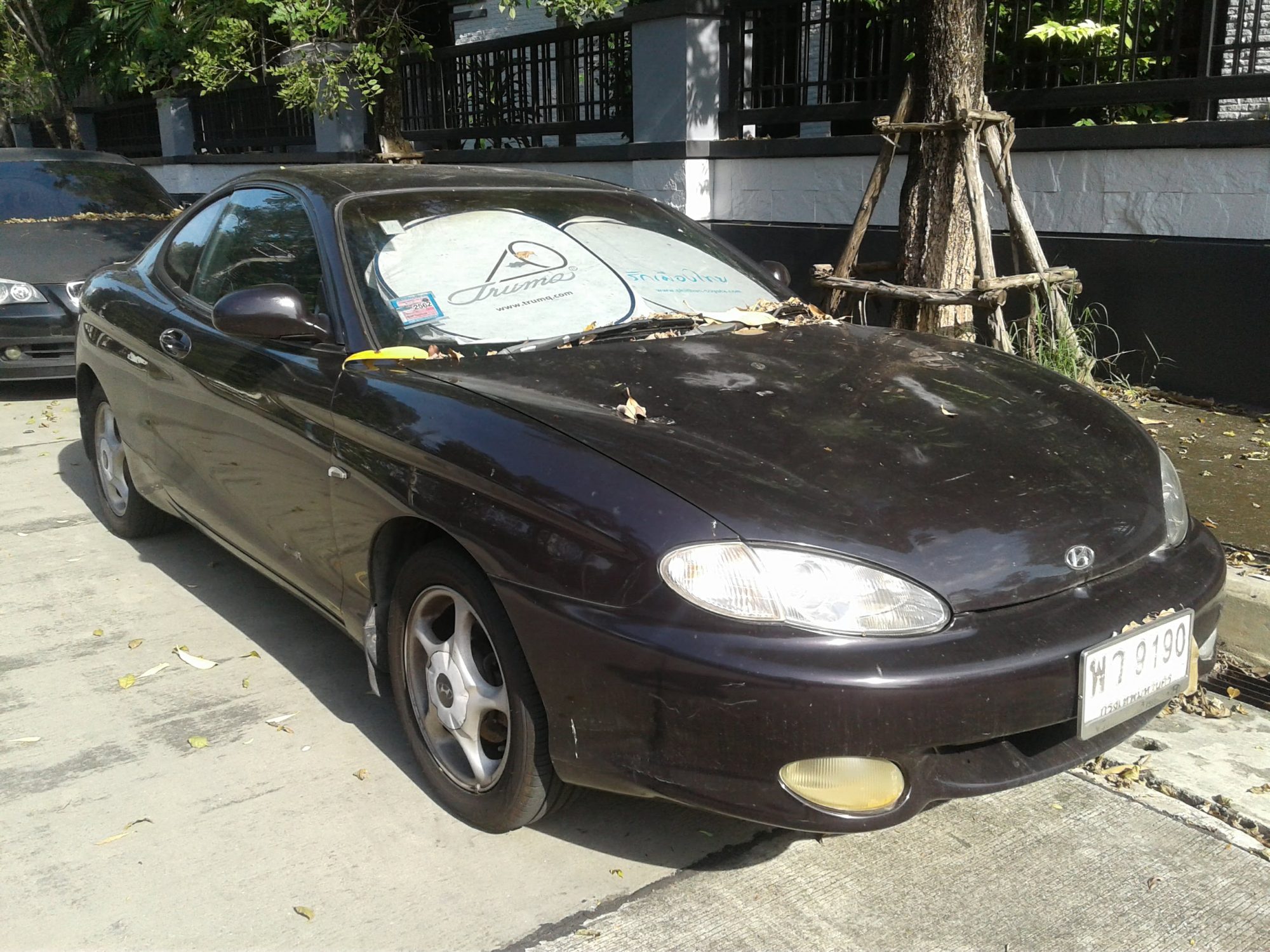

Hyundai Tiburon
A front-drive coupé on Elantra running gear, sold as Coupé in Europe and Tuscani in Korea. The badge changes and the mechanicals do not — the 1.6 and 2.0 Beta fours and the 2.7 Delta V6 all appear in saloons of the same years, so a code here is diagnosed with Elantra and Tiburon material interchangeably. The V6 cars are the ones worth knowing about: the Delta is a belt-driven interference engine, and the six-speed manual behind it was fitted only to this car in the range.
_FX_Coup%C3%A9_(2018-11-11)_01.jpg){kind=link}
Generations
-
RD 1996–2001
Beta fours on the J2 Elantra floorpan. Simple OBD-II era engine management with no variable valve timing to complicate a misfire.
- Body styles
- Coupé
- Platform
- Hyundai J2
- Engines
-
- 1.6 Beta — G4GR · petrol · 83 kW (111 hp)
- 1.8 Beta — G4GM · petrol · 97 kW (130 hp)
- 2.0 Beta — G4GF · petrol · 104 kW (140 hp)
- Transmissions
- 5-speed manual · 4-speed automatic
- Drivetrain
- Front-wheel drive
-
GK 2001–2008
Pininfarina-styled, on the XD Elantra platform. The 2.7 Delta V6 with the six-speed manual is the version whose timing belt interval is the one thing to establish before anything else.
- Body styles
- Coupé
- Platform
- Hyundai XD
- Engines
-
- 1.6 Alpha II — G4ED · petrol · 78 kW (105 hp)
- 2.0 Beta II — G4GC · petrol · 103–107 kW (138–143 hp)
- 2.7 Delta V6 — G6BA · petrol · 125–130 kW (167–174 hp)
- Transmissions
- 5-speed manual · 6-speed manual · 4-speed automatic
- Drivetrain
- Front-wheel drive
