Vehicle

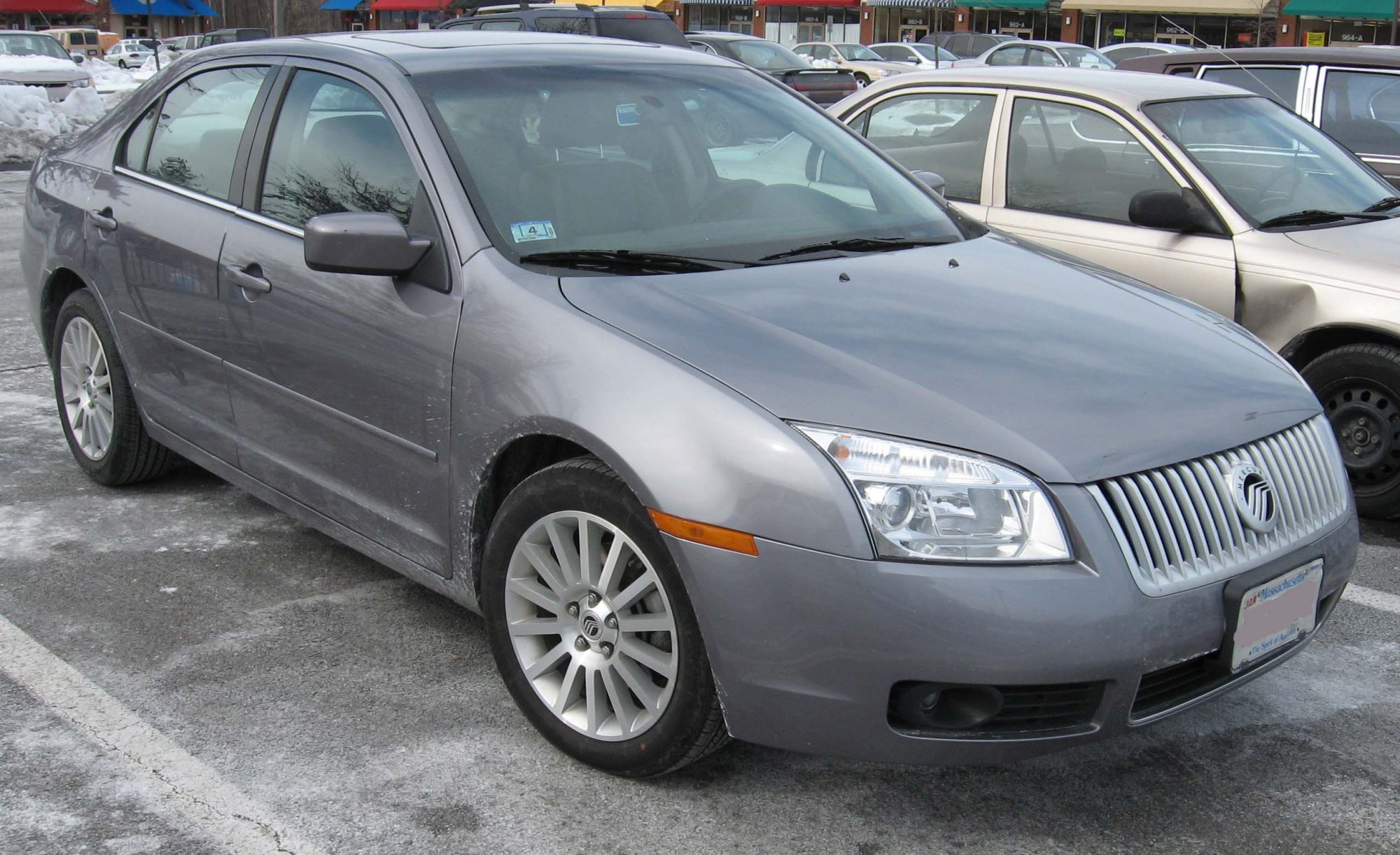

Mercury Milan
A Ford Fusion with a different grille, on the CD3 platform shared with the Mazda6 of the same era — so Fusion information applies unchanged and there is vastly more of it. The hybrid is the one worth separating: it uses Ford's full hybrid system with an electric continuously variable transaxle, so its high-voltage, inverter and regenerative-braking codes have nothing in common with the conventional car's.
Generations
-
First generation 2006–2011
A Fusion under the badge on CD3; the hybrid's electric transaxle puts it in an entirely separate diagnostic space from the conventional car.
- Body styles
- Sedan
- Platform
- Ford CD3
- Engines
-
- 2.3 Duratec — petrol · 119 kW (160 hp) · 212 Nm (156 lb-ft)
- 2.5 Duratec — petrol · 130 kW (175 hp) · 233 Nm (172 lb-ft)
- 3.0 Duratec V6 — petrol · 165 kW (221 hp) · 278–302 Nm (205–223 lb-ft)
- 2.5 hybrid — hybrid
- Transmissions
- e-CVT · 5-speed Mazda G5M manual · 6-speed Mazda G6M manual · 5-speed Mazda FNR5 automatic · 6-speed Aisin TF-80 automatic · 6-speed Ford 6F35 automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
