Vehicle

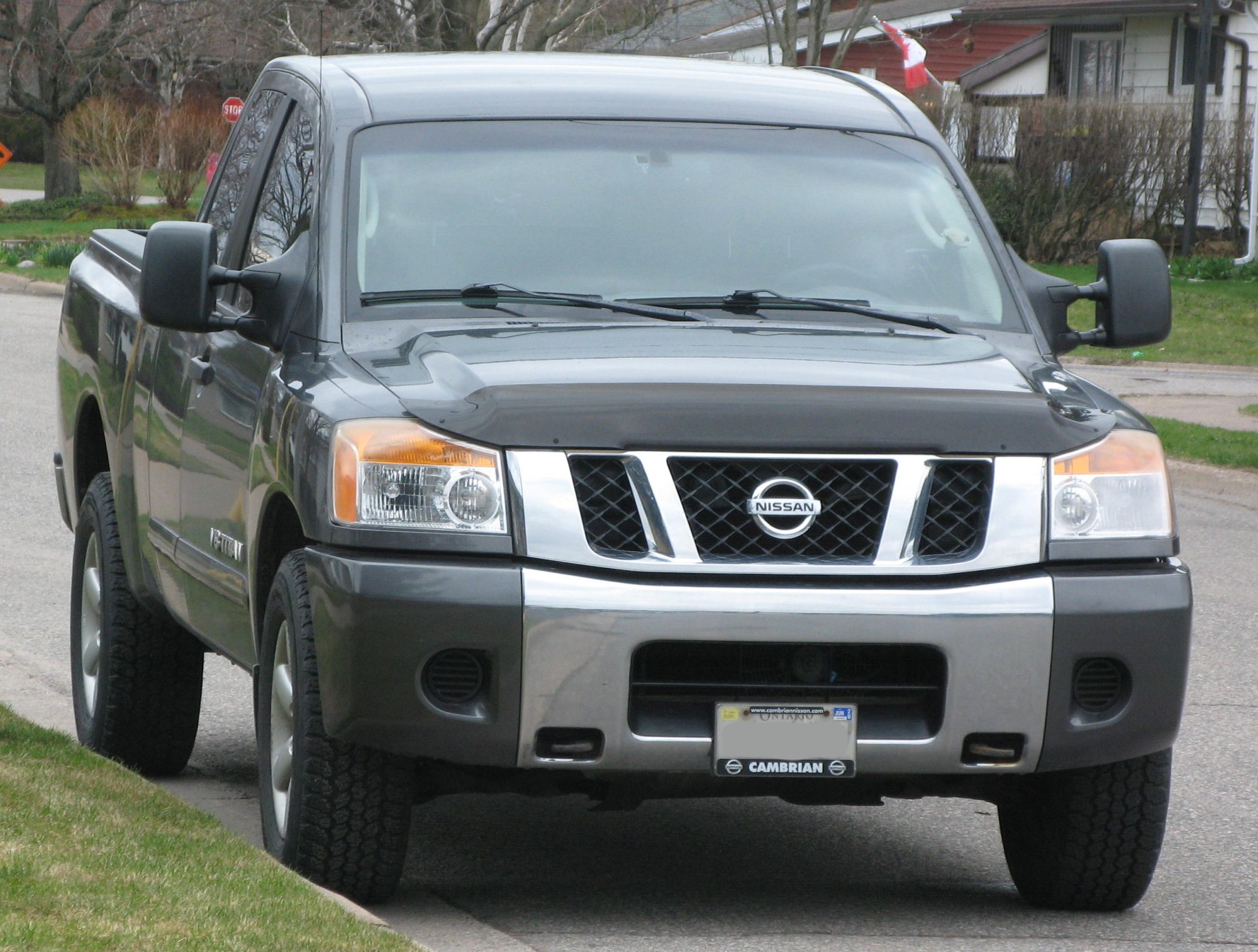

Nissan Titan
Nissan's full-size pickup, built on the F-Alpha frame it shares with the Armada and Patrol, and powered for most of its life by the VK56 V8. Two faults define it. The first is exhaust manifold cracking and broken manifold studs on the 2004-2010 trucks, which produces an exhaust leak upstream of the oxygen sensors and therefore lean codes and fuel-trim drift on an engine with nothing wrong with its fuelling — a case where reading the trims without inspecting the manifolds sends the diagnosis in the wrong direction entirely. The second is the rear axle and its vent, where water ingress after wading destroys the differential quietly. The Titan XD is a longer, heavier truck and for a period carried a Cummins 5.0 V8 diesel with its own separate diagnosis.
Generations
-
First generation (A60) 2004–2015
VK56DE on the F-Alpha frame; cracked exhaust manifolds leak upstream of the oxygen sensors and produce lean codes with healthy fuelling.
- Body styles
- Pickup
- Platform
- Nissan F-Alpha
- Engines
-
- 5.6 V8 — VK56DE · petrol · 227–239 kW (304–321 hp) · 514–533 Nm (379–393 lb-ft)
- Transmissions
- 5-speed automatic
- Drivetrain
- Rear-wheel drive · Part-time four-wheel drive with low range
-
Second generation (A61) 2016–2024
VK56VD with direct injection, and for a period a Cummins 5.0 V8 diesel in the XD with its own diagnosis.
- Body styles
- Pickup
- Platform
- Nissan F-Alpha
- Engines
-
- 5.6 V8 — VK56VD · petrol · 280–319 kW (375–428 hp) · 525–565 Nm (387–417 lb-ft)
- 5.0 Cummins V8 — diesel · Titan XD
- Transmissions
- 7-speed automatic · 9-speed automatic · 6-speed automatic · 9-speed Jatco JR913E
- Drivetrain
- Rear-wheel drive · Part-time four-wheel drive with low range
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
