Vehicle
Toyota Avalon
The large saloon above the Camry, and mechanically it is a Camry for almost every purpose — the same 1MZ and 2GR V6 families, the same transverse front-drive layout, the same hybrid system in the later cars. That is the useful fact, because far more has been written about the Camry and nearly all of it applies. What the Avalon adds is length and equipment rather than engineering, so a fault that is not body, trim or air-conditioning is very likely documented under the Camry of the same years. The 2GR-FE oil line that generates most of the mid-life V6 complaints is common to both.
Generations
-
XX10 1994–1999
The 1MZ-FE V6 and a four-speed automatic, shared with the Camry of the period.
- Body styles
- Sedan
- Platform
- Toyota XV10
- Engines
-
- 3.0 V6 — 1MZ-FE · petrol · 145–162 kW (194–217 hp) · 248–304 Nm (183–224 lb-ft)
- Transmissions
- 4-speed A541E automatic
- Drivetrain
- Front-wheel drive
-
XX20 1999–2004
Still the 1MZ-FE; sold as the Pronard in Japan.
- Body styles
- Sedan
- Platform
- Toyota XV20
- Engines
-
- 3.0 V6 — 1MZ-FE · petrol · 145–162 kW (194–217 hp) · 248–304 Nm (183–224 lb-ft)
- Transmissions
- 4-speed A541E automatic
- Drivetrain
- Front-wheel drive
-
XX30 2005–2012
The 2GR-FE arrives; its rubber oil line is the recurring item on these years.
- Body styles
- Sedan
- Platform
- Toyota K
- Engines
-
- 3.5 V6 — 2GR-FE · petrol · 200–234 kW (268–314 hp) · 336–353 Nm (248–260 lb-ft)
- Transmissions
- 5-speed U151E automatic · 6-speed U660E automatic
- Drivetrain
- Front-wheel drive
-
XX40 2013–2018
A hybrid joins the V6, using the Camry's 2AR-FXE and e-CVT.
- Body styles
- Sedan
- Platform
- Toyota K
- Engines
-
- 3.5 V6 — 2GR-FE · petrol · 200–234 kW (268–314 hp) · 336–353 Nm (248–260 lb-ft)
- 2.5 hybrid — 2AR-FXE · hybrid · 112–118 kW (150–158 hp) · 206–213 Nm (152–157 lb-ft)
- Transmissions
- 6-speed automatic · e-CVT
- Drivetrain
- Front-wheel drive
-

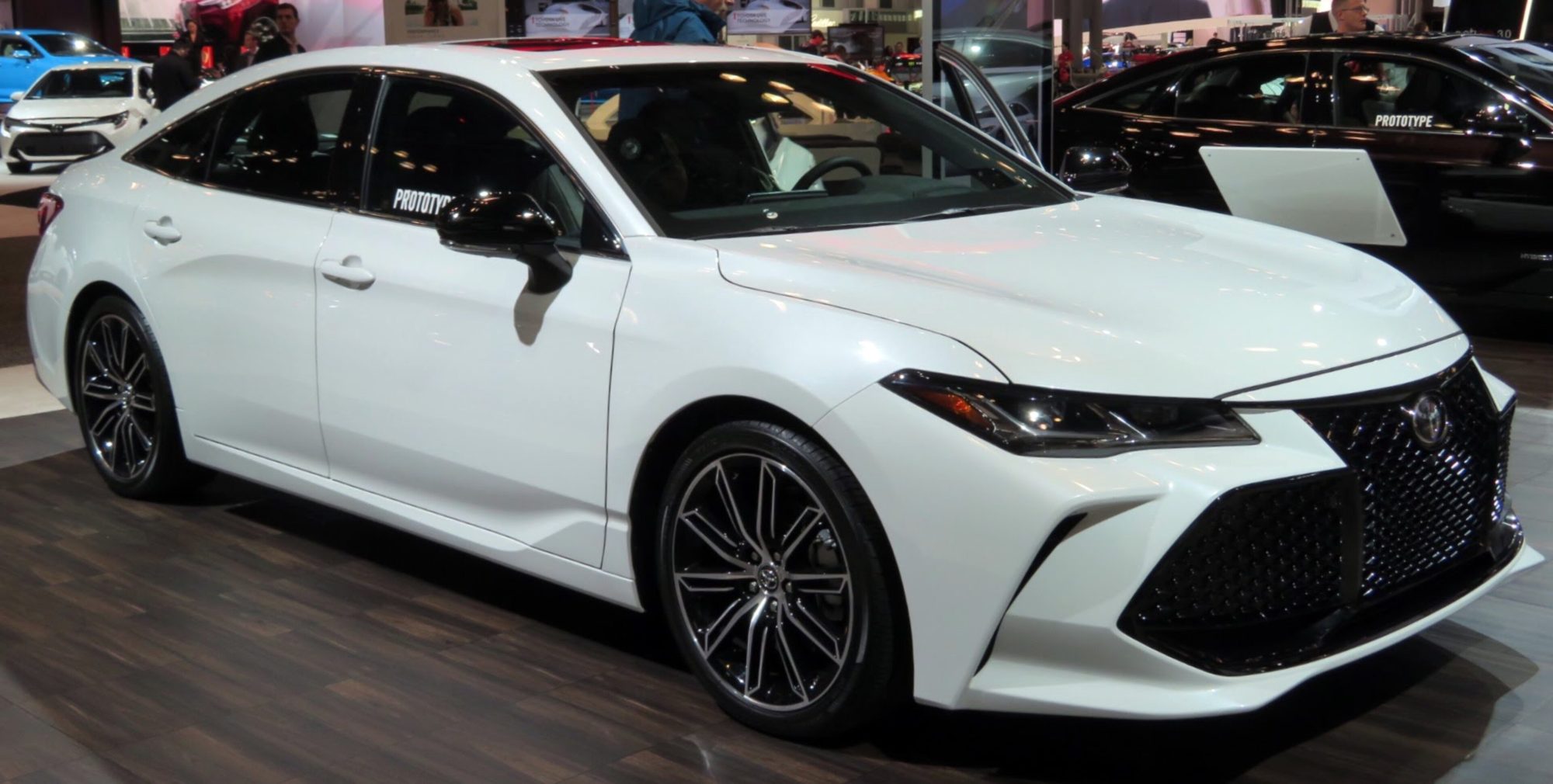

XX50 2018–2022
The last Avalon, on TNGA; an eight-speed for the V6 and all-wheel drive on late cars.
- Body styles
- Sedan
- Platform
- Toyota TNGA-K
- Engines
-
- 3.5 V6 — 2GR-FKS · petrol · 221–224 kW (296–300 hp) · 357–362 Nm (263–267 lb-ft)
- 2.5 hybrid — A25A-FXS · hybrid · 219–243 Nm (162–179 lb-ft)
- 2.0 — M20A-FKS · petrol · 202–210 Nm (149–155 lb-ft)
- 2.0 — M20D-FKS · petrol · gasoline, China
- 2.5 — A25A-FKS · petrol · 151 kW (202 hp) · 247–249 Nm (182–184 lb-ft) · gasoline, AWD
- 2.5 — A25G-FKS · petrol · gasoline, China
- 2.5 — A25H-FXS · hybrid · hybrid, China
- Transmissions
- 8-speed automatic · e-CVT · K120 CVT with physical first gear · 8-speed Direct Shift automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
