Vehicle

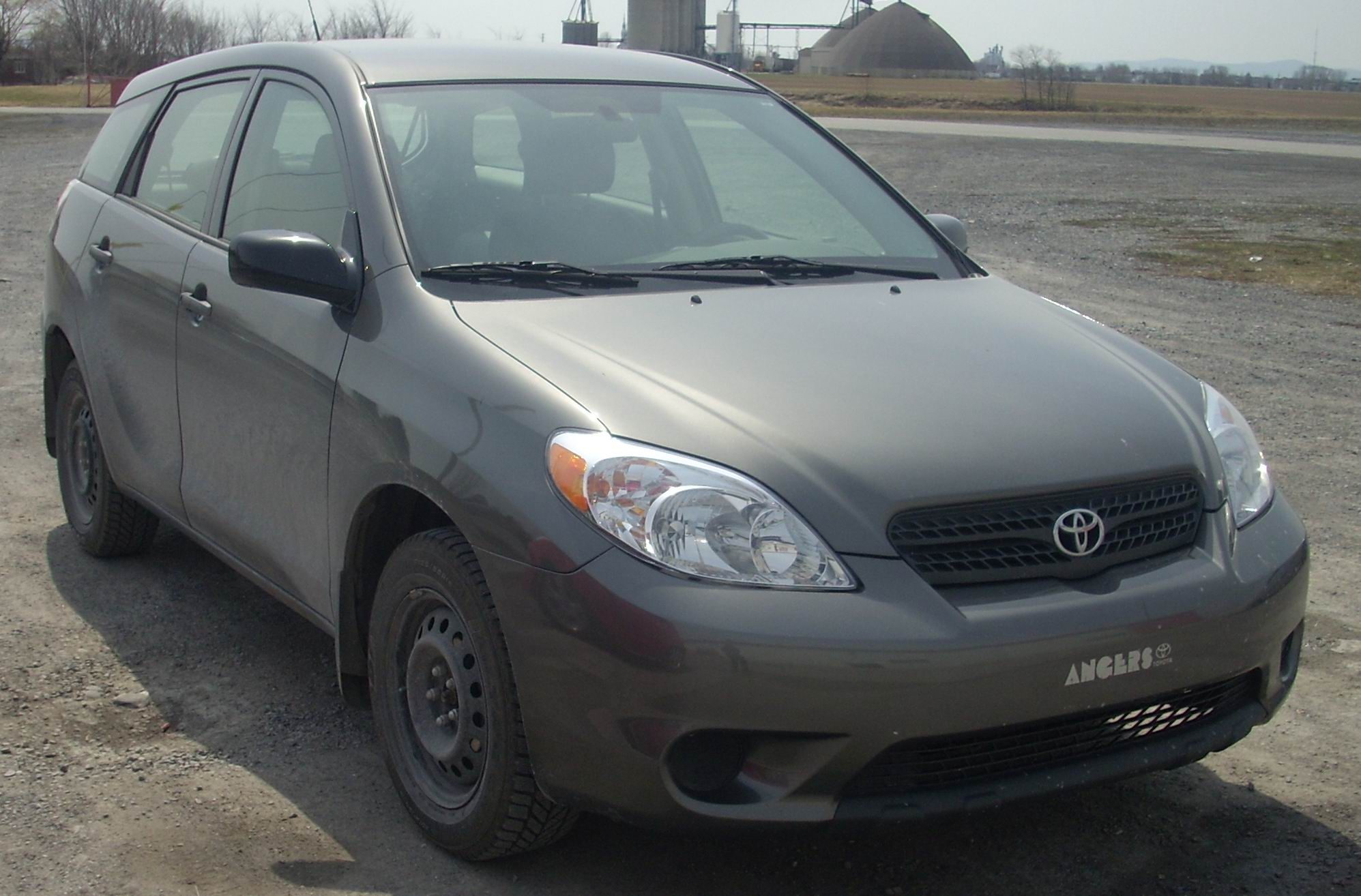

Toyota Matrix
The tall hatchback on Corolla mechanicals, built at NUMMI in California alongside the Pontiac Vibe, which is the same car under a different badge — so Vibe material applies without qualification and Corolla material covers the engines and gearboxes. Worth knowing in both directions, because the population is split between two names and the writing with it. The XRS is the one to identify first: its 2ZZ-GE is the high-revving lift-cam engine and behaves nothing like the ordinary 1ZZ — different oil demands, a different failure profile, and a lift mechanism that generates codes the base car cannot produce. All-wheel drive was offered on the four-speed automatic cars only.
Generations
-
E130 2002–2008
1ZZ-FE, or the lift-cam 2ZZ-GE in the XRS; the Pontiac Vibe is the same car.
- Body styles
- Hatchback
- Platform
- Toyota E130
- Engines
-
- 1.8 four-cylinder — 1ZZ-FE · petrol · 161–172 Nm (119–127 lb-ft)
- 1.8 lift-cam — petrol · 2ZZ-GE, the XRS
- Transmissions
- 4-speed automatic · 5-speed C59 manual · 6-speed C60 manual
- Drivetrain
- Front-wheel drive · Four-wheel drive
-
E140 2008–2014
2ZR-FE and a 2.4; the Vibe ended in 2010 but the Matrix ran on to 2014.
- Body styles
- Hatchback
- Platform
- Toyota E140
- Engines
-
- 1.8 four-cylinder — 2ZR-FE · petrol · 92–103 kW (123–138 hp) · 163–175 Nm (120–129 lb-ft)
- 2.4 four-cylinder — 2AZ-FE · petrol · 117–132 kW (157–177 hp) · 220–224 Nm (162–165 lb-ft)
- Transmissions
- 5-speed manual · 4-speed automatic · 5-speed automatic
- Drivetrain
- Front-wheel drive · Four-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
