BMW X1

The compact SUV, and the model where BMW changed its own rules — the E84 is rear-wheel-drive-based on the 3 Series platform, and the F48 from 2015 is front-wheel-drive-based on the Mini's UKL2. That is a complete architectural inversion under one nameplate: the engine sits longitudinally in one and transversely in the other, the gearbox is a ZF automatic in one and an Aisin or dual-clutch in the other, and almost no driveline component carries across. Establishing the generation is not optional here.

WhatsApp Telegram X Email

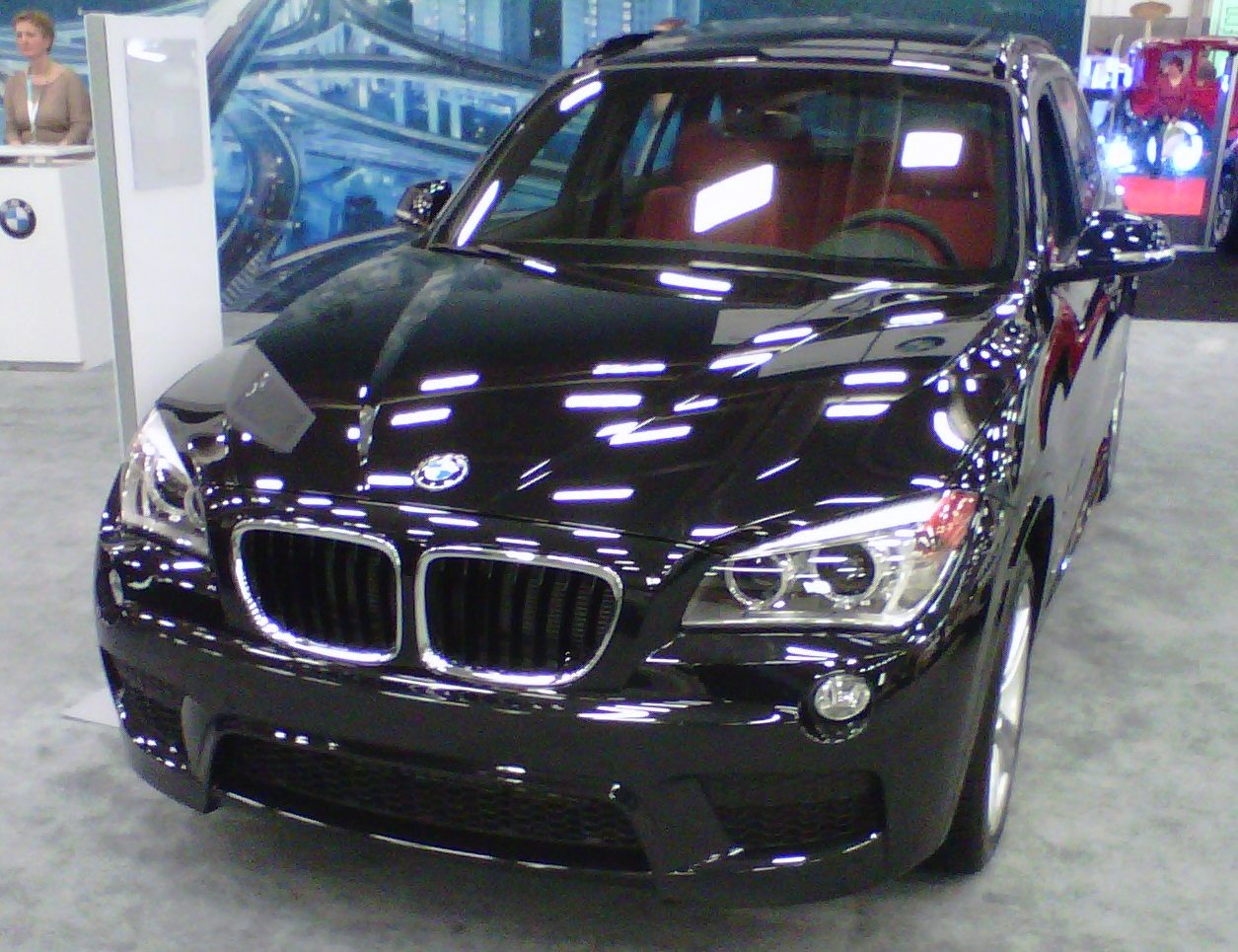

BMW X1 — Bull-Doser · Public domain (external)

Generations

E84 2009–2015

Rear-drive-based on the 3 Series platform with a longitudinal engine — the last X1 built the traditional BMW way.
Body styles

SUV

Platform

BMW E84
Engines
1.6 turbo four-cylinder — petrol · N13

2.0 turbo four-cylinder — N20 · petrol · 115–180 kW (154–241 hp) · 240–350 Nm (177–258 lb-ft)

3.0 straight-six — N52 · petrol · 160–190 kW (215–255 hp) · 310 Nm (229 lb-ft)

2.0d — N47 · diesel · 85–160 kW (114–215 hp) · 260–450 Nm (192–332 lb-ft)

2.0 — N46 · petrol · 110 kW (148 hp) · 200 Nm (148 lb-ft)

3.0 turbo — N55 · petrol · 225–272 kW (302–365 hp) · 400–500 Nm (295–369 lb-ft)
Transmissions

6-speed manual · 6-speed ZF 6HP automatic · 8-speed ZF 8HP automatic

Drivetrain

Rear-wheel drive · xDrive four-wheel drive
F48 2015–2022

Front-drive-based on the Mini's UKL2 with a transverse engine — an architectural inversion, and almost nothing carries over from the E84.
Body styles

SUV

Platform

BMW UKL2
Engines
1.5 turbo three-cylinder — B38 · petrol · 100–103 kW (134–138 hp) · 220 Nm (162 lb-ft)

2.0 turbo four-cylinder — B48 · petrol · 131–170 kW (176–228 hp) · 280–350 Nm (207–258 lb-ft)

1.5 turbo PHEV — B38A15M0 · plug-in hybrid · 220 Nm (162 lb-ft) · xDrive25e

2.0d — B47 · diesel · 110–170 kW (148–228 hp) · 330–450 Nm (243–332 lb-ft)

1.5 turbo — B37 · diesel · 85 kW (114 hp) · 270 Nm (199 lb-ft)
Transmissions

6-speed manual · 6-speed automatic · 8-speed automatic Aisin AWF8F35 · 7-speed DCT Getrag 7DCT300

Drivetrain

Front-wheel drive · xDrive four-wheel drive
U11 2022–present

FAAR, still transverse and front-drive-based; the iX1 puts a battery-electric variant on the same nameplate for the first time.
Body styles

SUV

Platform

BMW FAAR
Engines
1.5 turbo three-cylinder — B38 · mild hybrid · 104–170 kW (139–228 hp) · 220–320 Nm (162–236 lb-ft)

2.0 turbo four-cylinder — B48 · mild hybrid · 115–233 kW (154–312 hp) · 250–450 Nm (184–332 lb-ft)

2.0 d four-cylinder — B47 · mild hybrid · 85–170 kW (114–228 hp) · 270–500 Nm (199–369 lb-ft)

64.7 kWh electric — electric · iX1

1.5 turbo — B38A15M0 · hybrid
Transmissions

Single-speed reduction · 7-speed DCT wet Getrag 7DCT300 · Single-speed automatic

Drivetrain

Front-wheel drive · xDrive four-wheel drive

Service information

BMW Aftersales Online System (AOS) (external) — Workshop literature

Information, not instruction

CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.

Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
