Vehicle

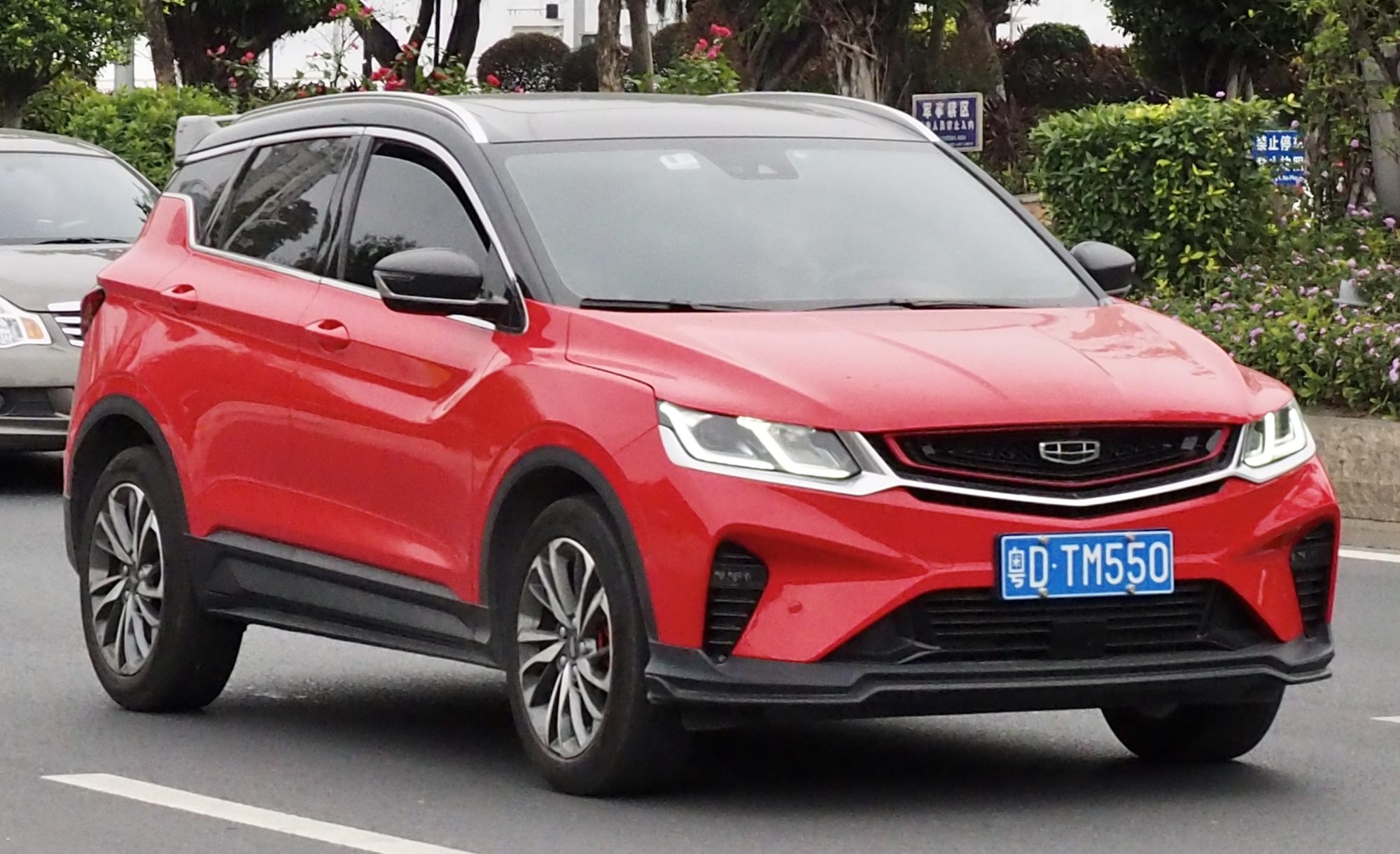

Geely Coolray
The compact SUV on the BMA platform, sold as the Binyue in China, the Proton X50 in Malaysia and the BelGee X50 in Belarus and Russia. Establishing which 1.5 is in front of you comes before any driveability diagnosis, because three different engines wear that badge: a port-injected three-cylinder, a direct-injected three-cylinder, and — from the 2022 facelift — a four-cylinder that is a different design rather than a revision. Only the direct-injected cars accumulate intake-valve carbon, so a rough idle at 60,000 km means something quite different on each. The gearbox is where most of its stored codes concentrate, and it is a wet-clutch dual-clutch unit rather than the dry type — different symptoms, different diagnosis.
Generations
-
SX11 2018–2022
BMA platform. Three-cylinder turbo petrol in port-injected and direct-injected forms — the distinction that decides whether intake carbon is a plausible cause at all.
- Body styles
- SUV
- Platform
- Geely BMA
- Engines
-
- 1.0 turbo three-cylinder — JLA-3G10TD · petrol · 101 kW (136 hp)
- 1.4 turbo — JLB-4G14T · petrol
- 1.5 turbo three-cylinder — JLH-3G15T · petrol · 110 kW (148 hp) · 226 Nm (167 lb-ft) · port injection — no intake-valve carbon path
- 1.5 turbo three-cylinder GDI — JLH-3G15TD · petrol · 130 kW (174 hp) · 255 Nm (188 lb-ft) · 1,477 cc, direct injection; a licensed relative of Volvo's B3154T
- 1.5 naturally aspirated — BHE15-AFD · petrol
- 1.5 — BHE-15TD · petrol
- Transmissions
- 6-speed manual · 6-speed dual-clutch · 7-speed dual-clutch · CVT
- Drivetrain
- Front-wheel drive
-
SX11 facelift (Binyue Cool) 2022–present
The engine changes architecture rather than being revised — a four-cylinder replaces the three, so cylinder-specific misfire codes no longer map to the same physical layout. A plug-in hybrid joins the range.
- Body styles
- SUV
- Platform
- Geely BMA
- Engines
-
- 1.5 turbo four-cylinder — BHE15-EFZ · petrol · 133 kW (178 hp) · 290 Nm (214 lb-ft) · 1,499 cc — four cylinders, where the engine it replaces had three
- 1.5 turbo plug-in hybrid — B3154T5 · plug-in hybrid · 190 kW (255 hp) combined · 415 Nm (306 lb-ft) combined · 11.3 kWh pack, 60 kW drive motor — high-voltage precautions apply where the petrol cars need none
- 1.5 turbo — JLH-3G15T · petrol
- 1.5 — BHE-15TD · petrol
- Transmissions
- 7-speed dual-clutch
- Drivetrain
- Front-wheel drive
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
