Vehicle

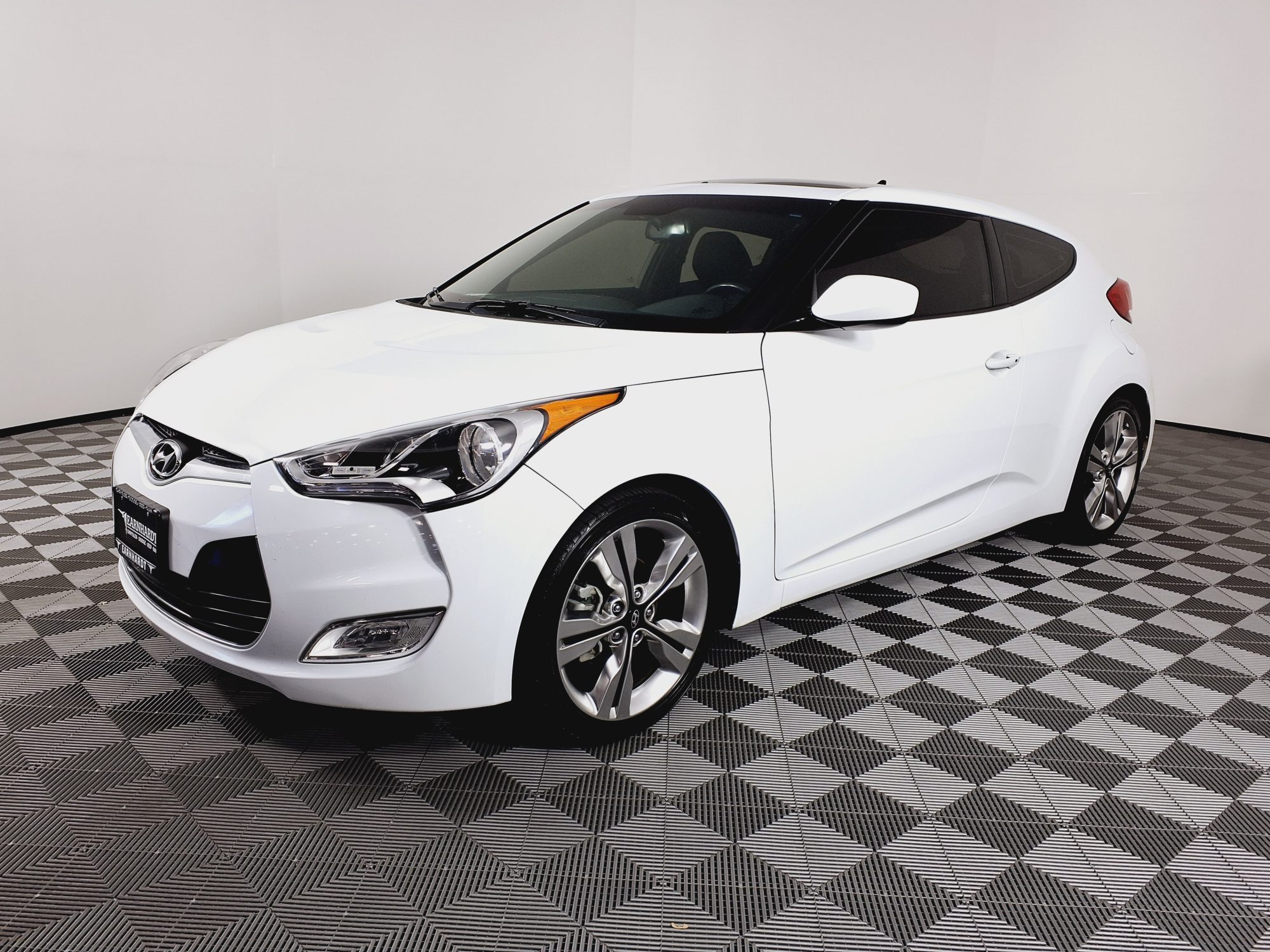

Hyundai Veloster
The three-door coupé with the asymmetric door arrangement, on the platform it shares with the Elantra and i30, which is where its running-gear information lives. Two engine families matter and they behave differently. The naturally aspirated 1.6 GDI is a direct-injection engine with no port injectors, so carbon builds on the intake valves and produces misfire and lean codes on an engine in otherwise good order — the fault that catches out anyone treating it as a port-injected car. The 1.6 T-GDI turbo adds the recirculation valve and a water-cooled bearing housing whose coolant lines are worth inspecting before a boost fault is chased electrically. The Veloster N's electronic limited-slip differential and variable exhaust each have their own actuators and codes.
Generations
-
First generation (FS) 2011–2017
Elantra and i30 running gear; the 1.6 GDI's intake-valve carbon is the fault behind most of its misfire codes.
- Body styles
- Coupé · Hatchback
- Platform
- Hyundai-Kia PB
- Engines
-
- 1.6 GDI — petrol · 103 kW (138 hp) · 167 Nm (123 lb-ft) · Gamma
- 1.6 T-GDI — petrol · 137–150 kW (184–201 hp) · 265 Nm (195 lb-ft) · Gamma turbo
- Transmissions
- 6-speed manual · 6-speed automatic · 6-speed D6GF1 DCT · 7-speed D7UF1 DCT
- Drivetrain
- Front-wheel drive
-
Second generation (JS) 2018–2022
The Veloster N arrives with an electronic limited-slip differential and variable exhaust, each with their own actuators.
- A6GF1 / A6MF1 6-speed automatic
- D7UF1 (7DCT) 7-speed dual-clutch
- D8LF1 (8DCT) 8-speed dual-clutch
- Dual-clutch (DCT / DSG) dual-clutch
- Body styles
- Coupé · Hatchback
- Platform
- Hyundai-Kia K2
- Engines
-
- 2.0 MPI — petrol · 110 kW (148 hp) · 179 Nm (132 lb-ft) · Nu
- 1.6 T-GDI — petrol · 150 kW (201 hp) · 264 Nm (195 lb-ft) · Gamma turbo
- 2.0 T-GDI — petrol · 184 kW (247 hp) · 353 Nm (260 lb-ft) · Theta, Veloster N
- 1.4 turbo — petrol · 103 kW (138 hp) · 242 Nm (178 lb-ft)
- Transmissions
- 6-speed M6GF2 manual · 6-speed A6GF1 automatic · 7-speed D7UF1 DCT · 8-speed D8LF1 DCT
- Drivetrain
- Front-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
