Vehicle

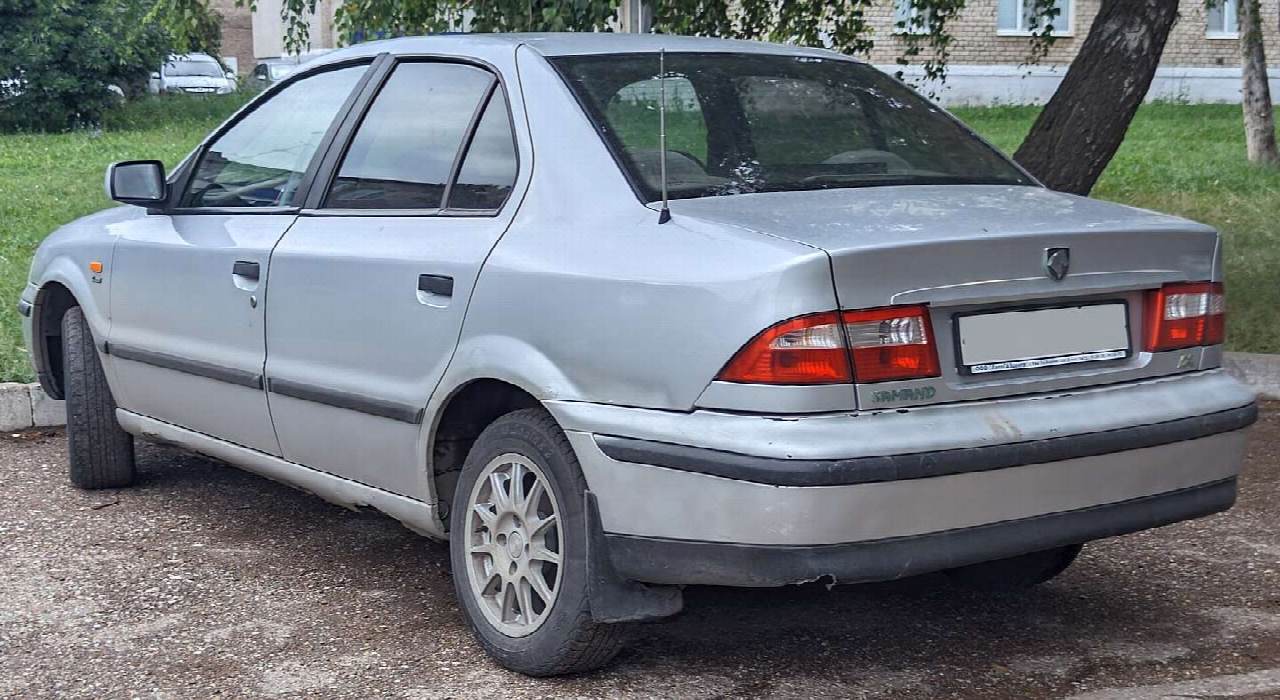

Iran Khodro Samand
Iran's national car, built on the Peugeot 405 platform — which is the key diagnostic fact: much 405-era knowledge applies directly. The EF7 engine, developed for it, is widely run bi-fuel on CNG, so fuel-trim and misfire codes need the gas system considered alongside the petrol one; a lean code with a healthy petrol side often traces to the CNG reducer or injectors.
Generations
-
Samand 2001–present
Built on the Peugeot 405 platform, so much 405-era knowledge applies directly; widely run bi-fuel on CNG.
- Body styles
- Sedan
- Platform
- Peugeot 405 derived
- Engines
-
- 1.8 — XU7 · petrol · 75 kW (100 hp) · 126–153 Nm (93–113 lb-ft)
- 1.7 — EF7 · petrol · 85 kW (114 hp) · 155 Nm (114 lb-ft)
- 1.7 bi-fuel — EF7 · CNG bi-fuel · 75 kW (100 hp) · 136 Nm (100 lb-ft) · the gas-mode figure, not the petrol one — the same engine reads 114 hp and 155 Nm on petrol, and a lean code with a healthy petrol side often traces to the gas reducer or injectors
- Transmissions
- 5-speed BE3 manual
- Drivetrain
- Front-wheel drive
-
Soren 2007–present
The EF7 engine at volume, including a turbocharged version late in the run.
- Body styles
- Sedan
- Platform
- Peugeot 405
- Engines
-
- 1.7 — EF7 · petrol · 75–85 kW (100–114 hp) · 126–155 Nm (93–114 lb-ft)
- 1.7 CNG — EF7 · CNG bi-fuel · 75 kW (100 hp) · 136 Nm (100 lb-ft) · the gas-mode figure — Iran Khodro's own catalogue puts the bi-fuel engine 13 hp and 19 Nm below its petrol rating
- 1.7 turbo — EF7 · petrol · 112 kW (150 hp) · 215 Nm (159 lb-ft)
- 1.8 — XU7 · petrol · 75 kW (100 hp) · 126–153 Nm (93–113 lb-ft)
- Transmissions
- 5-speed BE3 manual
- Drivetrain
- Front-wheel drive
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
