Vehicle

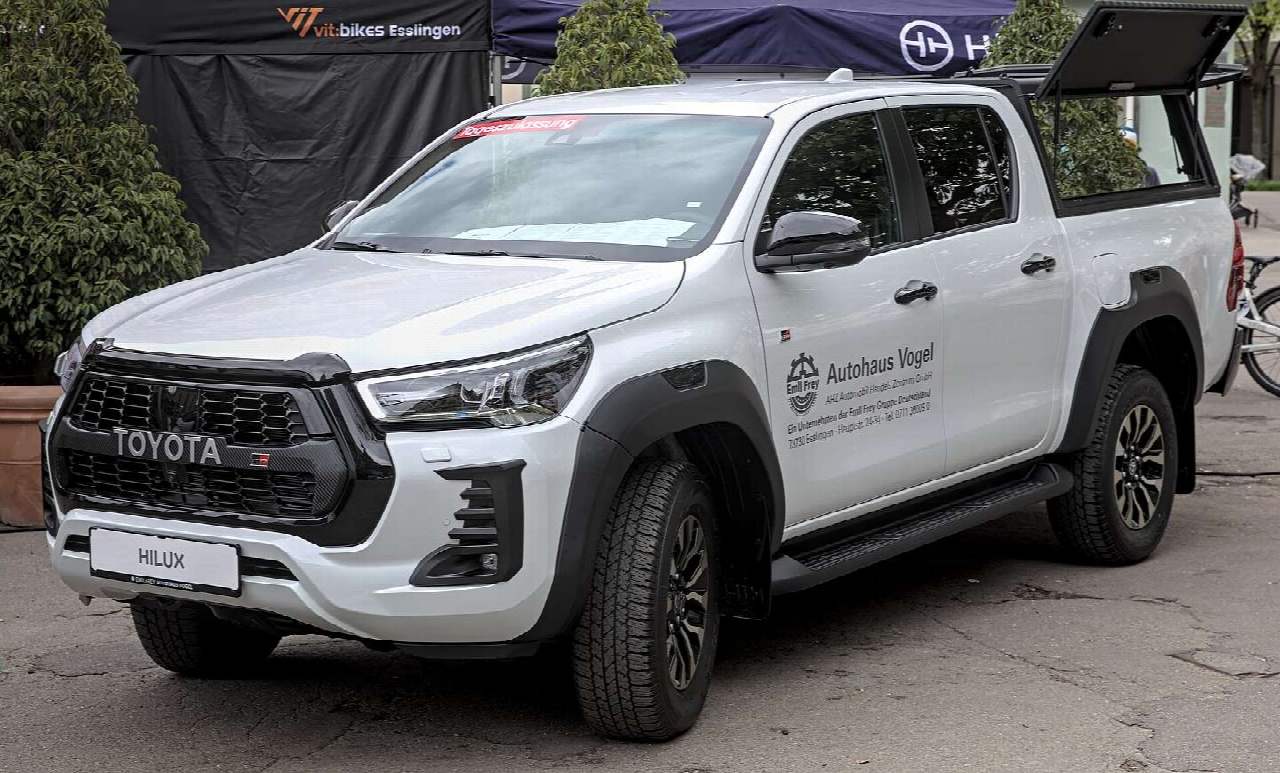

Toyota Hilux
The global workhorse pickup, overwhelmingly diesel outside North America. Common-rail injection from the KD engines onward means the corpus's rail-pressure and injector pages apply in full, and DPF codes dominate later examples.
Generations
-
AN10/AN30 2004–2015
1KD/2KD-FTV common-rail diesels; injector seal failure feeding combustion gas into the fuel system is the classic pattern.
- Body styles
- Pickup
- Platform
- Toyota IMV
- Engines
-
- 2.0 — 1TR-FE · petrol
- 2.7 — 2TR-FE · petrol
- 4.0 V6 — 1GR-FE · petrol · 177–199 kW (237–267 hp) · 361–380 Nm (266–280 lb-ft)
- 2.5 D-4D — 2KD-FTV · diesel · 75–107 kW (101–143 hp) · 192–343 Nm (142–253 lb-ft)
- 3.0 D-4D — 1KD-FTV · diesel · 100–140 kW (134–188 hp) · 280–420 Nm (207–310 lb-ft)
- 2.4 — 2L-T · diesel
- Transmissions
- 5-speed manual · 6-speed manual · 4-speed automatic · 5-speed A750F automatic
- Drivetrain
- Rear-wheel drive · Part-time four-wheel drive with low range
-
AN120 2015–present
2.4/2.8 GD engines with DPF; regeneration-interrupted codes are the daily traffic.
- Body styles
- Pickup
- Platform
- Toyota IMV
- Engines
-
- 2.7 — 2TR-FE · petrol · 120–122 kW (161–164 hp) · 245 Nm (181 lb-ft)
- 4.0 V6 — 1GR-FE · petrol · 175 kW (235 hp) · 376 Nm (277 lb-ft)
- 2.4 GD — 2GD-FTV · diesel · 400 Nm (295 lb-ft)
- 2.8 GD — 1GD-FTV · diesel · 300–550 Nm (221–406 lb-ft)
- 2.0 — 1TR-FE · petrol · 182 Nm (134 lb-ft)
- 2.5 turbo — 2KD-FTV · diesel · 75–107 kW (101–143 hp) · 192–343 Nm (142–253 lb-ft)
- 3.0 turbo — 1KD-FTV · diesel · 100–140 kW (134–188 hp) · 280–420 Nm (207–310 lb-ft)
- 3.0 — 5L-E · diesel
- Transmissions
- 6-speed manual · 6-speed automatic · 5-speed R151 manual · 5-speed A750F automatic
- Drivetrain
- Rear-wheel drive · Part-time four-wheel drive with low range
Service information
Information, not instruction
CarGeek is a reference, not a service manual. Its pages are written from public sources and from what other people have found, never from a manufacturer's own service information, so they can be wrong or incomplete for your particular vehicle. Some of what they describe carries real risk: high voltage, fuel under pressure, stored energy, hot and moving parts.
Have anything you intend to act on checked by a trained person against the manufacturer's own procedure for your vehicle. Nothing here replaces that procedure.
