Vehicle

Holden Ute

A coupé utility — a passenger car's cabin and running gear with an open tray behind it — and a body style with no equivalent outside Australia, which is the practically useful point: nothing from an American pickup applies to it. Underneath it is a Commodore of the same letter and shares that car's information entirely, engines, transmissions and front suspension alike. What is its own is the rear: a longer wheelbase, different spring and damper rates, and on later cars a load-sensing brake proportioning arrangement whose sensor sets chassis codes that read as an ABS fault. The Crewman is the four-door version and the same vehicle mechanically.

WhatsApp Telegram X Email

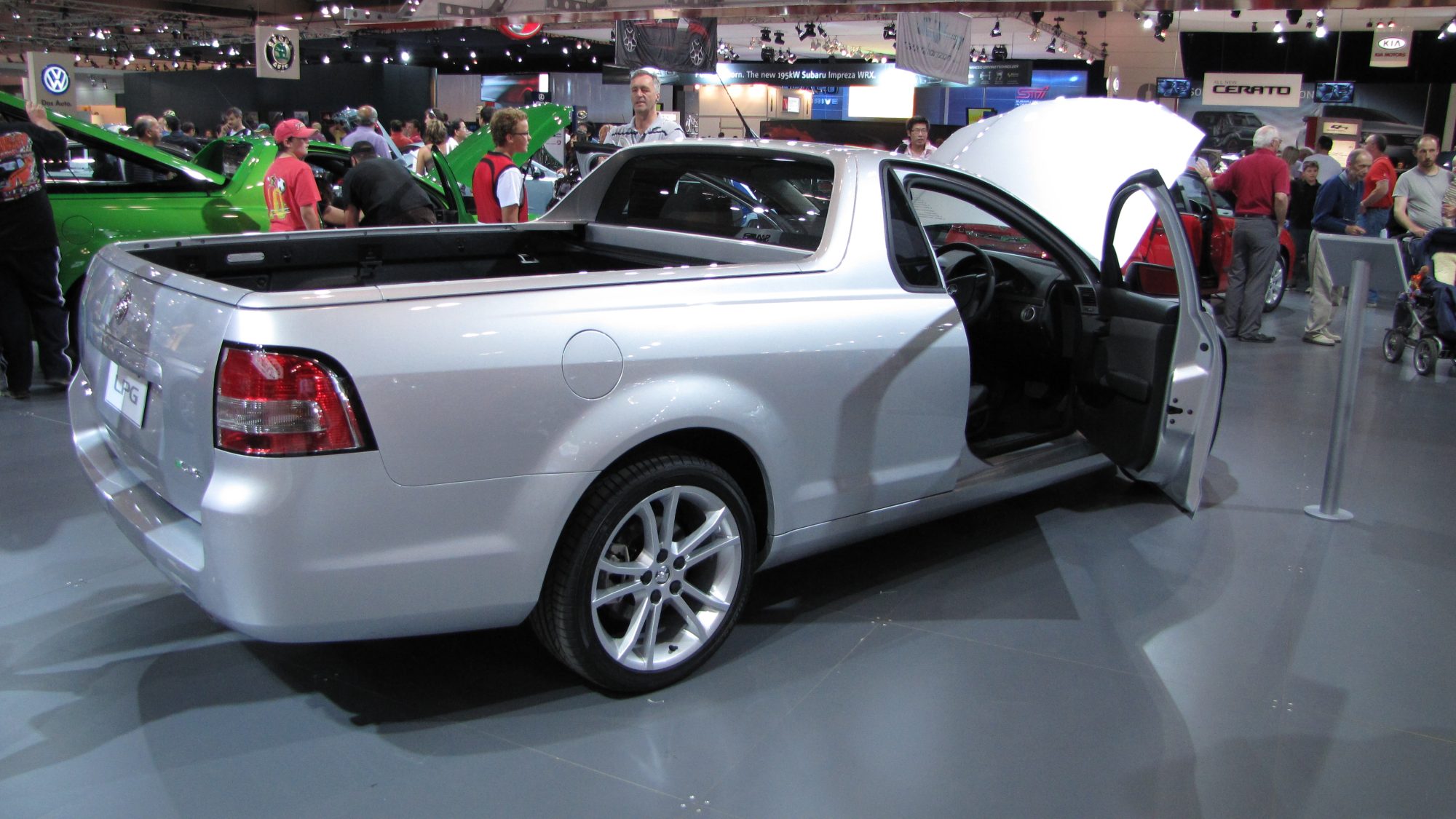

Holden Ute — Simon, Mandy Joshua and Bradley Yeo from Pakenham, Australia. · CC BY 2.0 (external)

Generations

VU to VZ 2000–2007

A Commodore ahead of the B-pillar; the load-sensing brake proportioning valve is the fault that reads as ABS.
Body styles

Pickup

Platform

GM V-body (Australian)
Engines
3.8 V6 — L36 · petrol · Ecotec, VU and VY

3.8 supercharged V6 — L67 · petrol · Ecotec, VU and VY

3.6 V6 — LE0 · petrol · 175 kW (235 hp) · 320 Nm (236 lb-ft) · Alloytec 175, VZ

3.6 V6 — LY7 · petrol · 190 kW (255 hp) · 340 Nm (251 lb-ft) · Alloytec 190, VZ

5.7 V8 — LS1 · petrol · 225–235 kW (302–315 hp) · 461 Nm (340 lb-ft) · Gen III

6.0 V8 — L76 · petrol · Gen IV, VZ

6.0 V8 — L98 · petrol · 260 kW (349 hp) · Gen IV, VZ

6.0 V8 — LS2 · petrol · Gen IV, HSV only
Transmissions

5-speed manual · 6-speed manual · 4-speed automatic

Drivetrain

Rear-wheel drive
VE and VF Ute 2007–2017

Zeta platform, sharing the VE and VF Commodore's powertrain and diagnosis throughout.
- Gen IV small block (4.8–7.0 LS)
- High Feature V6 (LFX / LY7 / LF1)
Body styles

Pickup

Platform

GM Zeta
Engines
3.6 V6 — petrol · 180–195 kW (241–261 hp) · 330–340 Nm (243–251 lb-ft) · High Feature LFX

6.0 V8 — L77 · petrol · 260–270 kW (349–362 hp) · 517–530 Nm (381–391 lb-ft)

6.2 V8 — LS3 · petrol · LS3

3.0 V6 — LF1 · petrol · 2006–2010

6.0 V8 — L98 · petrol · 270 kW (362 hp) · 530 Nm (391 lb-ft) · Manual 2008–2010

6.0 V8 — L76 · petrol · Auto 2008–2010

7.0 V8 — LS7 · petrol · HSV only
Transmissions

4-speed GM 4L60-E automatic · 5-speed GM 5L40-E automatic · 6-speed GM 6L50 automatic · 6-speed GM 6L80-E automatic · 6-speed Aisin AY6 manual · 6-speed Tremec T56 manual

Drivetrain

Rear-wheel drive
