Vehicle

Land Rover Defender

The nameplate covers two entirely unrelated vehicles, and confusing them is the most consequential mistake in this catalogue. The original, to 2016, is a ladder-frame utility vehicle with almost no electronics; the 2020 car is an aluminium monocoque with air suspension, mild-hybrid systems and forty-odd modules. No diagnostic knowledge crosses between them.

WhatsApp Telegram X Email

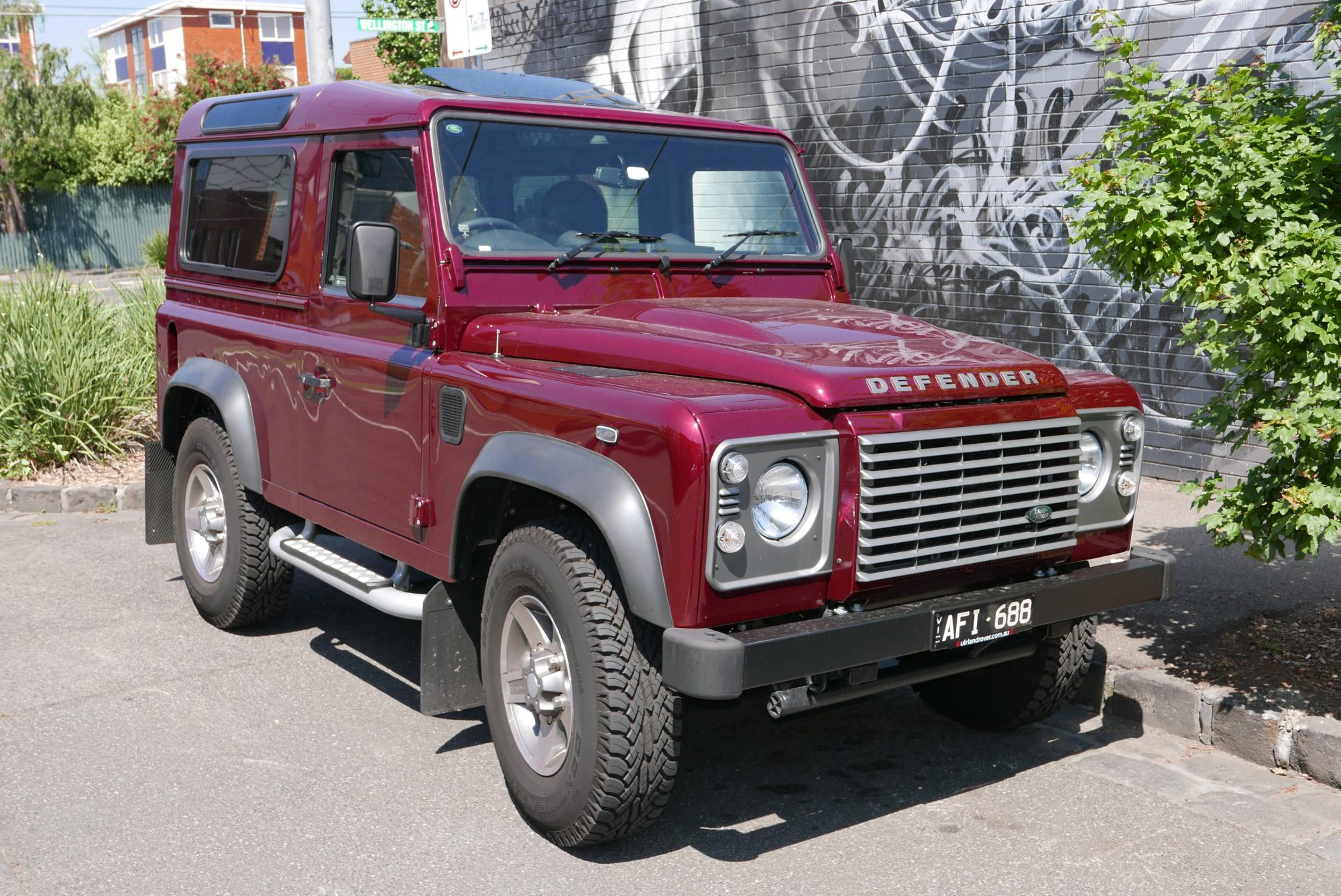

Land Rover Defender (L316) — OSX · Public domain (external)

Generations

L316 1990–2016

The original; TD5 and later Ford-derived diesels, mechanically simple throughout.
- LT77 / LT85 / LT95 / R380 manual
- ZF 4HP22 / 4HP24 4-speed automatic
Body styles

SUV · Pickup

Platform

Land Rover Defender
Engines
2.5 five-cylinder — TD5 · diesel

2.4 TDCi — diesel · 90 kW (121 hp)

2.2 TDCi — diesel

300Tdi — diesel

2.25 — petrol

2.5 — petrol

3.5 — petrol

2.25 diesel — diesel

3.9 V8 — petrol
Transmissions

4-speed LT95 manual · 5-speed LT77 manual · 5-speed LT85 manual · 5-speed R380 manual · 4-speed ZF 4HP22 automatic · 6-speed GFT MT-82 manual

Drivetrain

Four-wheel drive
L663 2020–present

A wholly new vehicle — Ingenium engines, 48-volt systems, and a plug-in hybrid.
Body styles

SUV · Pickup

Platform

Land Rover D7x
Engines
2.0 Ingenium petrol — petrol · 221 kW (296 hp) · 400 Nm (295 lb-ft)

3.0 Ingenium straight-six — AJ20P6 · mild hybrid

5.0 supercharged V8 — petrol

2.0 Ingenium PHEV — plug-in hybrid

2.0 Ingenium diesel D200 — diesel · 147–177 kW (197–237 hp)

3.0 Ingenium straight-six diesel — mild hybrid

2.0 turbo P300 — petrol · 400 Nm (295 lb-ft)

2.0 turbo plug-in hybrid — AJ200 · plug-in hybrid · 147–297 kW (197–398 hp) · 320–640 Nm (236–472 lb-ft)

3.0 turbo P400 — mild hybrid · 550 Nm (406 lb-ft)

4.4 turbo — S68B44T0 · petrol · 467 kW (626 hp) · 750 Nm (553 lb-ft)

5.0 — AJ133 · petrol · 386 kW (518 hp) · 625 Nm (461 lb-ft)
Transmissions

ZF 8-speed automatic

Drivetrain

Four-wheel drive
